HDL High Performance Relay Module 4CH 16A

*Special Order! NCNR - Check Lead Time*

SKU: HDL-MR0416.431

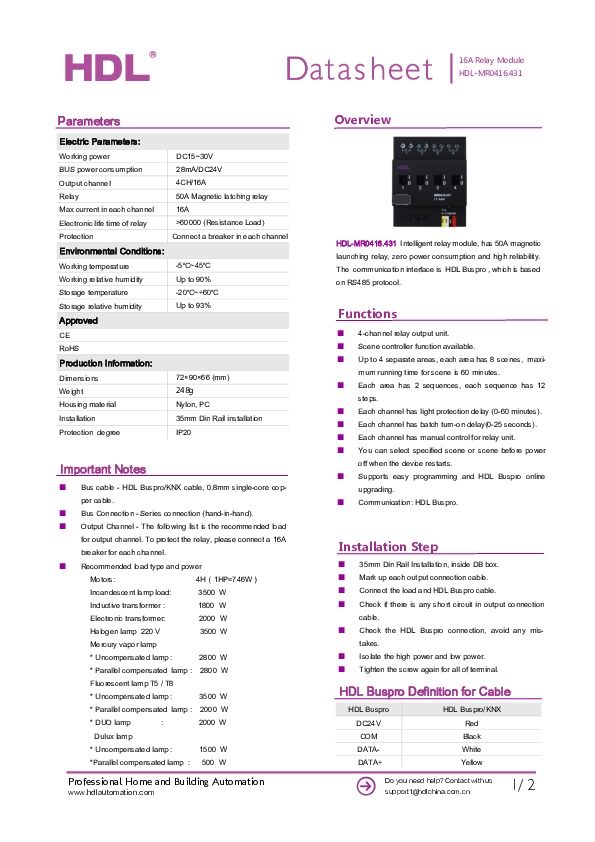

  Product Documents

HDL High Performance Relay Module 4CH 16A

*Special Order! NCNR - Check Lead Time*


The HDL-MR0416.431 relay module can supply 4 channels with a current of 16A. Manual channel control is enabled via the modules on-board buttons. This module is able to support diversified devices, and can be applied to any solution which requires switching control.

Zero power consumption:
Using a high performance magnetic launching relay the HDL-MR0416.431 does not consume any power in standby mode, and when the module is triggered it only uses a momentary DC Pulse.

Reliable:
Each of the 4 channels that the module outputs to support 16A. Due to the inclusion of a 50A magnetic relay, the module has a guaranteed stable performance, and lower maintenance requirements. This built in redundancy ensures the module has a long and efficient service life.

Multiple loads:
Thanks to the built in 50A magnetic relay, the module can handle a 500A current surge. This enables the module to switch multiple loads from a wide range of sources. From lighting, heating, motors, transformers, valves and power sockets, this module unifies and streamlines control into one simple to install and operate package.

Manual control:
Each channel has full manual control, and independent channel testing. This enables onsite switching of lights and dimming control even if the module is powered off.

Power on protection:
All of the modules 4 channels feature a power on protection delay time; this delay time is adjustable from 0-60 minutes. This delay protection safeguards lights that are connected to the module providing a hassle free service and a maximized life expectancy.

Functions:

  • 4-channel relay output unit
  • Scene controller function available
  • Up to 4 separate areas, each area has 8 scenes, maximum running time for scene is 60 minutes
  • Each area has 2 sequences, each sequence has 12 steps
  • Each channel has light protection delay (0-60 minutes)
  • Each channel has batch turn-on delay(0-25 seconds)
  • Each channel has manual control for relay unit
  • You can select specified scene or scene before power off when the device restarts
  • Supports easy programming and HDL Buspro online upgrading
  • Communication: HDL Buspro

Electrical Parameters:

  • Working power: DC15~30V
  • Bus power consumption: 28mA/DC24V
  • Output channel: 4CH/16A
  • Relay: 50A Magnetic latching relay
  • Max current in each channel: 16A
  • Electronic life time of relay: >60000 (Resistance Load)
  • Protection: Connect a breaker in each channel

Approved:

  • CE
  • RoHS

Product Information:

  • Dimensions: 72x90x66 (mm)
  • Weight: 248g
  • Housing material: Nylon, PC
  • Installation: 35mm DIN rail installation
