HDL Logic Module 240 x 4 Logic Blocks

*Special Order! NCNR - Check Lead Time*

SKU: HDL-MCLOG.431

  Product Documents

HDL Logic Module 240 x 4 Logic Blocks

*Special Order! NCNR - Check Lead Time*

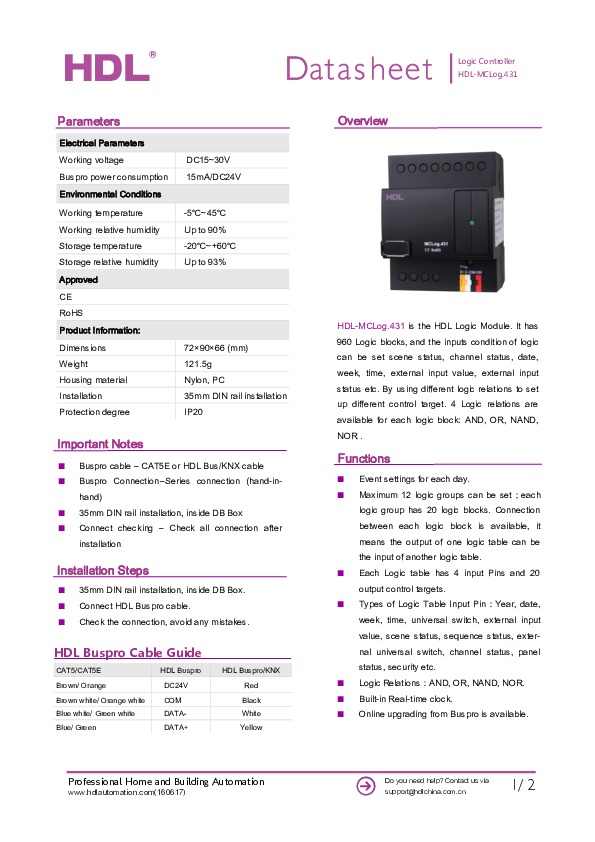

The HDL-MCLOG.431 provides centralised control over a range of targets. The module is capable of accepting 12 logic types, and has in total 960 logic blocks. The logic conditions enable the input of date and timing information, universal switch states, and external inputs.

Over 900 logic blocks:
With a massive 960 logic blocks, central control over a range of different devices/targets is possible. There are 12 logic groups in the HDL-MCLog.431, inside of each group there are 20 logic blocks, with each block having one of the four following logic types, AND, OR, NAND, and NOR. (Each logic table has 4 input pins and 1 output to control 20 targets.)

Multiple logic conditions:
The logic conditions support the input of the year, date, week, and time via the real time clock. The logic table input conditions can also accept the status of the scene, sequence, channel, external input, panel, universal switch, external input value, external universal switch, security, etc.

Functions:

  • Event settings for each day.
  • Maximum 12 logic groups can be set; each logic group has 20 logic blocks. Connection between each logic block is available, it means the output of one logic table can be the input of another logic table
  • Each Logic table has 4 input Pins and 20 output control targets
  • Types of Logic Table Input Pin: Year, date, week, time, universal switch, external input value, scene status, sequence status, external universal switch, channel status, panel status, security etc.
  • Logic Relations: AND, OR, NAND, NOR
  • Built-in Real-time clock
  • Online upgrading from Buspro is available

Electrical Parameters:

  • Working voltage: DC15~30V
  • BUS power consumption: 15mA/DC24V

Approved:

  • CE
  • RoHS

Product Information:

  • Dimensions: 72×90×66 (mm)
  • Weight: 121.5g
  • Housing material: Nylon, PC
  • Installation: 35mm DIN rail installation
