HDL High Performance Relay Module 8CH 10A

SKU: HDL-MR0810.432

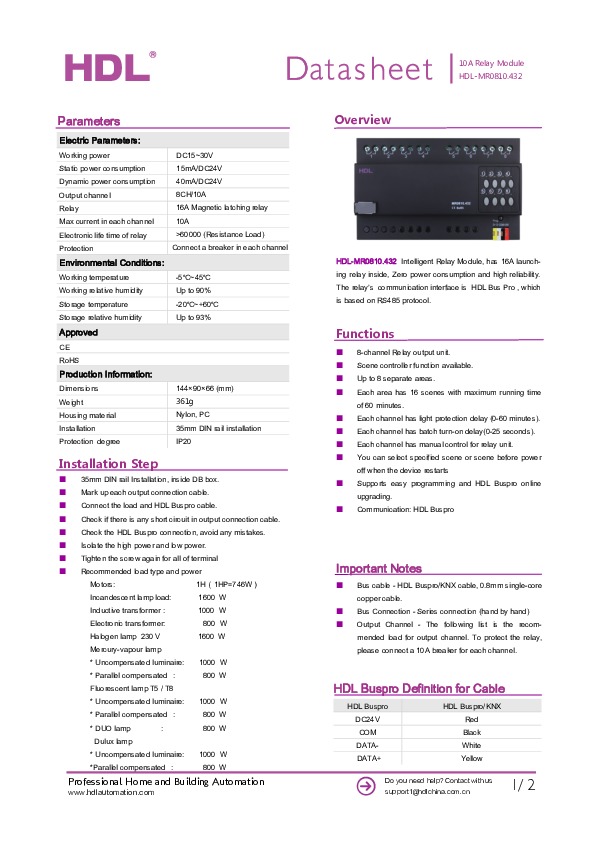

  Product Documents

HDL High Performance Relay Module 8CH 10A


The HDL-MR0810.432 relay module can supply 8 channels with a current of 10A. This module is able to support diversified devices, and can be applied in to any solution which requires switching control.

Zero power consumption:
Using a high performance magnetic launching relay the HDL-MR0810.432 does not consume any power in standby mode, and when the module is triggered it only uses a momentary DC Pulse.

Reliable:
Each of the 8 channels that the module outputs to support 10A. Due to the inclusion of a 16A magnetic relay, the module has a guaranteed stable performance, and lower maintenance requirements. This built in redundancy ensures the module has a long and efficient service life.

Multiple loads:
Thanks to the built in 16A magnetic relay, the module can handle a 500A current surge. This enables the module to switch multiple loads from a wide range of sources. From lighting, heating, motors, transformers, valves and power sockets, this module unifies and streamlines control into one simple to install and operate package.

Power on protection:
All of the modules 8 channels feature a power on protection delay time; this delay time is adjustable from 0-60 minutes. This delay protection safeguards lights that are connected to the module providing a hassle free service and a maximized life expectancy

Network protection:
In order to protect the power network the HDL-MR0810.432, has a delay time from 0-25 seconds. This ensures that the danger posed to the power network by current surges when multiple devices are turned on is negated.

Functions:

  • 8-channel Relay output unit
  • Scene controller function available
  • Up to 8 separate areas
  • Each area has 16 scenes with maximum running time of 60 minutes
  • Each channel has light protection delay (0-60 minutes)
  • Each channel has batch turn-on delay(0-25 seconds)
  • Each channel has manual control for relay unit
  • You can select specified scene or scene before power off when the device restarts
  • Supports easy programming and HDL Buspro online upgrading
  • Communication: HDL Buspro

Electrical Parameters:

  • Working power: DC15~30V
  • Static power consumption: 15mA/DC24V
  • Dynamic power consumption: 40mA/DC24V
  • Output channel: 8CH/10A
  • Relay: 16A Magnetic latching relay
  • Max current in each channel: 10A
  • Electronic life time of relay: >60000 (Resistance Load)
  • Protection: Connect a breaker in each channel

Approved:

  • CE
  • RoHS

Product Information:

  • Dimensions: 144x90x66 (mm)
  • Weight: 361g
  • Housing material: Nylon, PC
  • Installation: 35mm DIN rail installation
