TRIAX TMB1700 Multiband Launch Amp LTE700

Programmable 4 In 32 Filters 65dB 114dBµV
2 Year Warranty
*Special Order! NCNR - Check Lead Time*

SKU: 360242

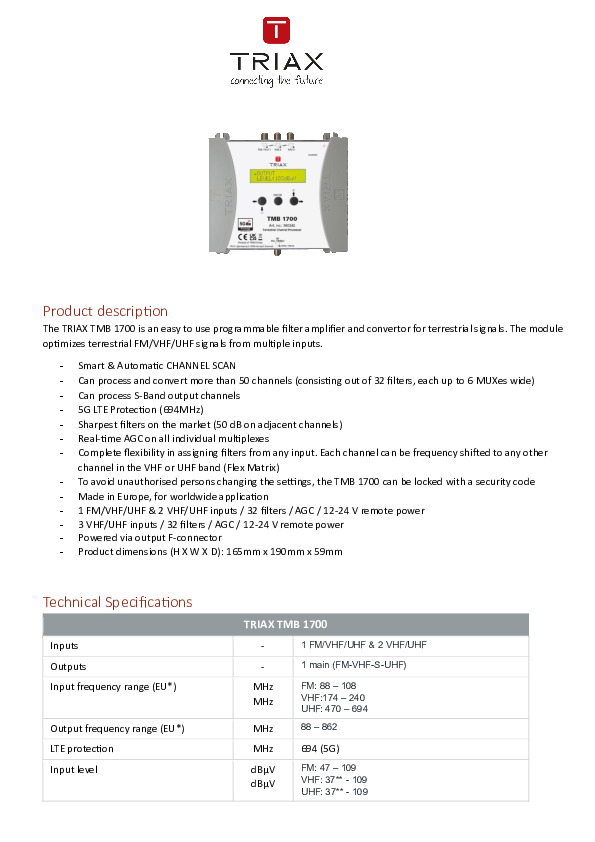

  Product Documents

TRIAX TMB1700 Multiband Launch Amp LTE700

Programmable 4 In 32 Filters 65dB 114dBµV
2 Year Warranty
*Special Order! NCNR - Check Lead Time*


The TRIAX TMB 1700 is an easy to use programmable filter amplifier and convertor for terrestrial signals.
The module optimises terrestrial FM/VHF/UHF signals from multiple inputs.

  • Smart & Automatic CHANNEL SCAN
  • Can process and convert more than 50 channels (consisting out of 32 filters, each up to 6 MUXes wide)
  • Can process S-Band output channels
  • 5G LTE Protection (694MHz)
  • Sharpest filters on the market (50 dB on adjacent channels)
  • Real-time AGC on all individual multiplexes
  • Complete flexibility in assigning filters from any input. Each channel can be frequency shifted to any other channel in the VHF or UHF band (Flex Matrix)
  • To avoid unauthorised persons changing the settings, the TMB 1700 can be locked with a security code
  • Made in Europe, for worldwide application
  • 1 FM/VHF/UHF & 2 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
  • 3 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
  • Powered via output F-connector
  • Product dimensions (H X W X D): 165mm x 190mm x 59mm

Only registered trade customers can see our prices.

Login

Register

  Product Documents

Product Reviews

There are no reviews yet for this product.
