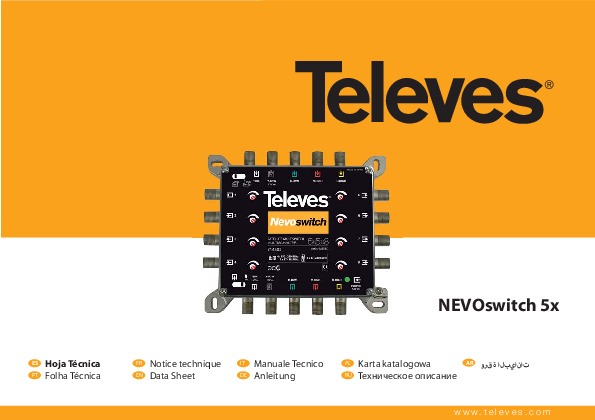

New range of input/multiple output switches from 4 to 32. It can be used as a cascade element
since it has 5 outputs to connect to other switches and increase the number of users.
It has the following powering options:
- Through the Power DC Jack (12 Vdc)
- Through the V-Low input (12 Vdc).
- Through the TERR input or output.
- Applying 12 /18V at any user output.
12V DC passes through the Terr and V-LOW input/output to power pre-amplif ers, BOSS antennas, LNB or other elements (cascade).
The switch can generate the required voltage or voltage + tone (QUAD references) so it’s compatible with any QUAD LNB.
The user can select the direction of the current/voltage through the TERR input/output using the Switch No. 1.
This range of products has been designed with the ECO system: as the number of users decreases, the power consumption of the system will decrease as well.
When no users are connected and there’s no local mains, the consumption will go down to 0A. In this case scenario, to see the DTT signal at least one user must be connected to the system to power it.
Any signal must balanced to 75 ohms (Switch No. 2) in the last element of the chain for the proper operation of the system.
This range allows control the output signal level of every user individually. (Not available for the QUAD range)
This range of products has been designed as a complement to the former MSW range, so any facility can be easily extended to more users, optimizing every output signal.
The voltage/current can be activated/deactivated in the MSW amplif ers to power pre-amplifiers, BOSS antennas, etc..
