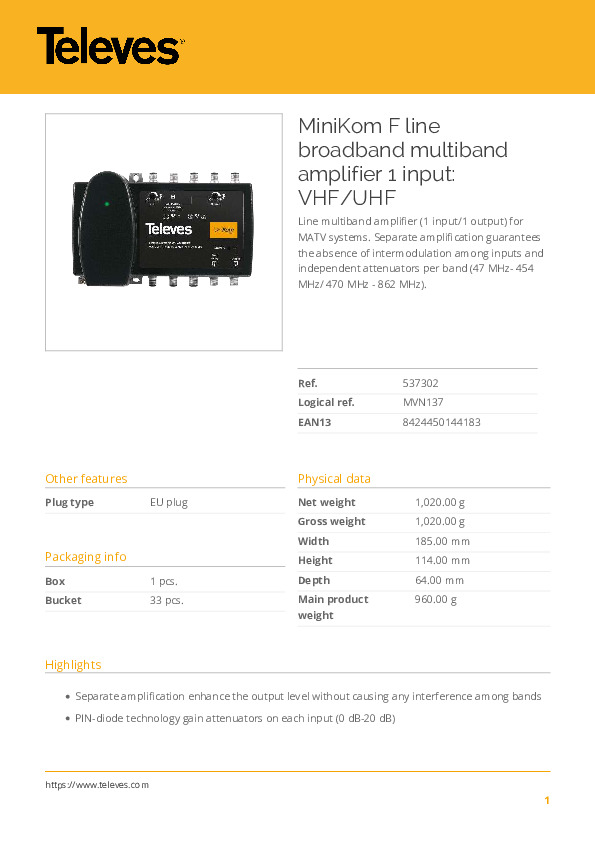

A single input, single amplifier based on a split-band amplification philosophy (47-454/470-862MHz) and band independent attenuators.
A single input, single output amplifier based on a split-band amplification philosophy (47-454/470-862MHz) and band independent attenuators.
A typical application is as a re-amplifier of MATV signals for its distribution in small and medium communals.
Band (MHz): 47-454
Gain (dB): 33+/-2
Maximum output level (DIN 45004B) (dBuV): > 115 typ.
Noise Figure (dB): < 6 typ.
Attenuator (dB): 0-20
2nd order distort. (Vo=106 dBuV) (dB): 50
Band (MHz): 470-862
Gain (dB): 34+/2 43+/-2
Maximum output level (DIN 45004B) (dBuV): > 116 typ.
Noise Figure (dB): < 6.5 typ.
Attenuator (dB): 0-15
2nd order distort. (Vo=106 dBuV) (dB): --
Mains voltage (V~): 230+/-10%
Max. power consumption (W): 9
Input DC bypass (automatic) (mA): 60 (24V=)
Protection level: IP20
