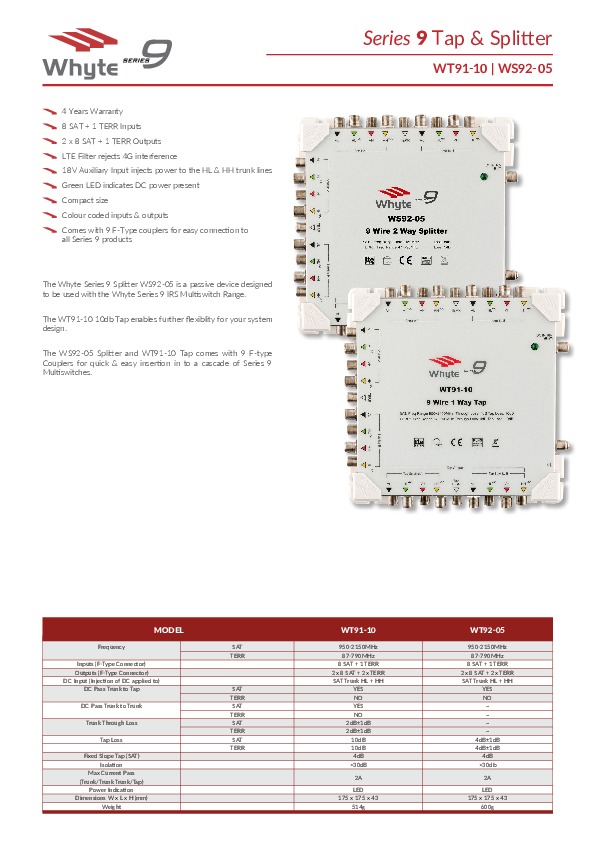

The Whyte Series 9 Tap is a passive device designed to be used with Whyte Series 9 IRS Multiswitch Range.The WT91-10 Tap comes with 9 F-Type Couplers for quick & easy insertion in to a cascade of Series 9 Multiswitches.
Main features:
- Compact size
- 8 SAT + 1 TERR Inputs
- 2 x 8 SAT + 1 TERR Outputs
- Colour coded inputs & outputs
- LTE Filter rejects 4G interference
- Green LED indicates DC power present
- 18V Auxiliary Input injects power to the HL & HH trunk lines
- Comes with 9 F-Type couplers for easy connection to all Series 9 products
Specifications:
Frequency: SAT: 950-2150MHz | TERR: 87-790MHz
Inputs (F-Type Connector): 8 SAT + 1 TERR
Outputs (F-Type Connector): 2× 8 SAT | 2× 1 TERR
DC Input (Injection of DC applied to): SAT Trunk HL + HH
DC Pass Trunk To Tap: SAT: All | TERR: No
DC Pass Trunk to Trunk: SAT: YES | TERR: NO
Trunk Through Loss: SAT: 2dB±1 | TERR: 2dB±1
Tap Loss: SAT: 10dB | TERR: 10dB
Fixed Slope Tap: 4dB
Isolation: >30dB
Max Current Pass (Trunk/Trunk Trunk/Tap): 2A
Power Indication: LED
Dimensions (mm): 175 x 175 x 43
Weight: 514g
