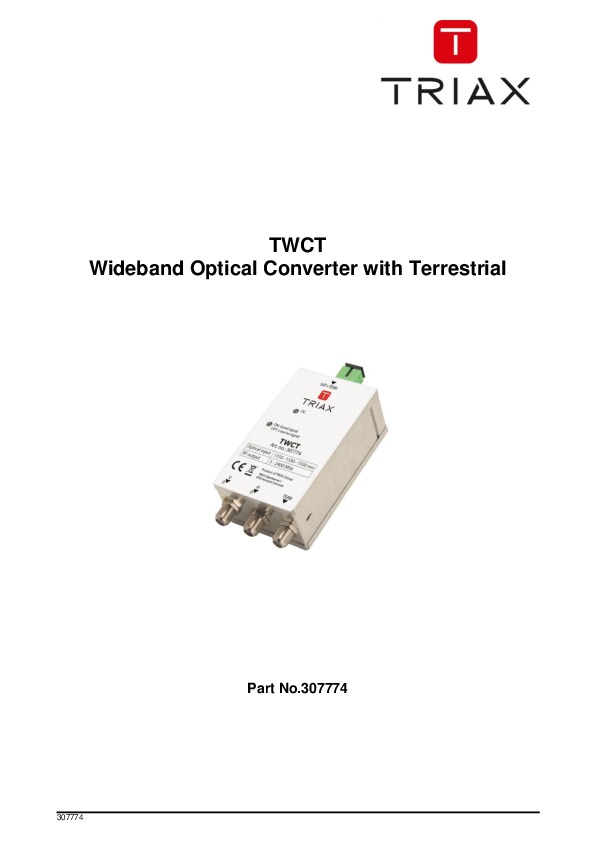

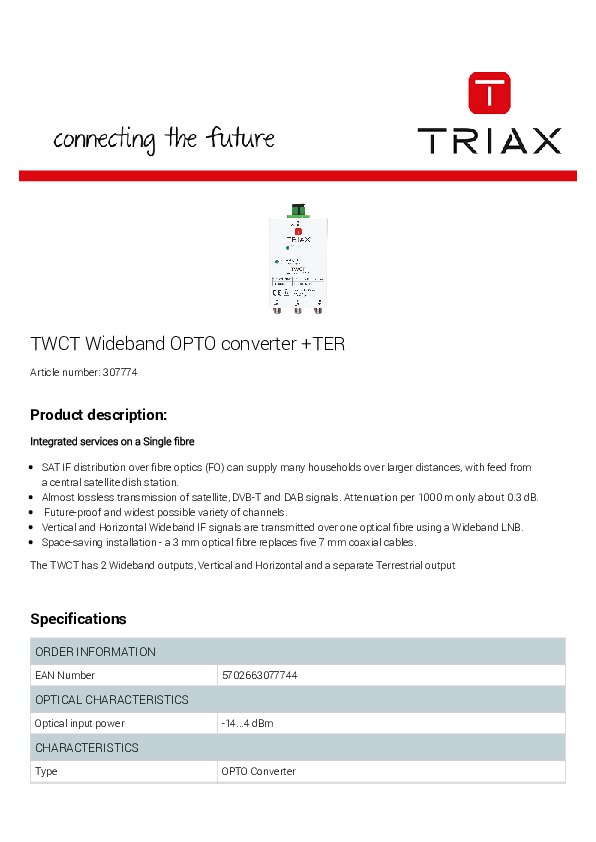

TRIAX TWCT Wideband Converter

Integrated services on a single fibre.

• SAT IF distribution over fibre optics (FO) can supply many households over larger distances, with feed from a central satellite dish station
• Almost lossless transmission of satellite, DVB-T and DAB signals. Attenuation per 1000 m only about 0.3 dB
• Future-proof and widest possible variety of channels
• Vertical and Horizontal Wideband IF signals are transmitted over one optical fibre using a Wideband LNB
• Space-saving installation - a 3 mm optical fibre replaces five 7 mm coaxial cables

The TWCT has 2 Wideband outputs, Vertical and Horizontal and a separate Terrestrial output.
OPTICAL CHARACTERISTICS
Optical input power: -14...4 dBm
CHARACTERISTICS
Type: OPTO Converter
Wavelength: 1310...1330...1550 nm
Output level TER: 80 dBµV
dSCR output level: 80 dBµV
FREQUENCY
Frequency range SAT: 5...2400 MHz
Frequency range TER: 5...790 MHz
RETURN LOSS
Return Loss: 10 dB
ELECTRICAL
Impedance: 75 Ω
OPERATIONAL
Remote Supply: 12...20 via V or H port V/mA
Power Consumption (typ.): 3 W
Temperature - operating: -20...55 °C
CONNECTORS
Connector IN: Optical - SC/APC
Connector OUT: F-female
Number of inputs: 1
Number of outputs: 3
MECHANICAL
Dimensions product (H x D x W): 60x51x122 mm
