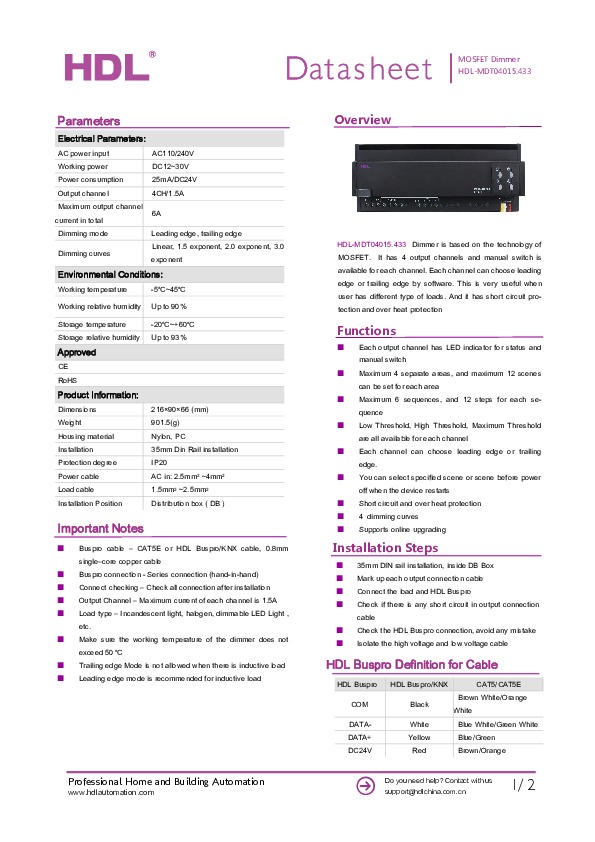

The HDL-MDT04015.532 is a MOSFET dimmer which supports leading edge and trailing edge dimming. Four selectable dimming curves are available, and the module is able to control inductive, resistive, and capacitive loads. Immediate system changes are possible via on-board manual buttons.
Different load Types:
Both leading and trailing edge modes are available. The leading edge supports both Inductive loads and resistive loads, while the trailing edge supports capacitive loads and resistive loads. This enables the operation of incandescent bulbs, motors, and dimmable LED lamps.
Selectable Dimming Curves:
With 4 different dimming curves, and a dimming accuracy of 512 steps, the dimming actuator operates smoothly giving total control to the end user.
Protection:
To prevent damage to the system and unit a variety of protective features are included. With an over heat sink, electronic short circuit protection, internal overheat protection, and overload protection, safety is guaranteed.
Scene Recovery:
When the dimmer has been powered off, it is able to automatically restore the last scene used when powered on again. This gives the user a system that remembers their previous scene, and requires no further control.
Manual control:
With the ability to bypass the main control interface, and manually control each channel, this unit gives an end user the ability to adjust and switch the dimming controller on & off.
Functions:
- Each output channel has LED indicator for status and manual switch
- Maximum 4 separate areas, and maximum 12 scenes can be set for each area
- Maximum 6 sequences, and 12 steps for each sequence
- Low Threshold, High Threshold, Maximum Threshold are all available for each channel
- You can select specified scene or scene before power off when the device restarts
- Short circuit and over heat protection
- 4 dimming curves
- Supports online upgrading
Electrical Parameters:
- Power input: AC110/240V
- Working power: DC12~30V
- Power consumption: 25mA/DC24V
- Output channel: 4CH/1.5A
- Maximum output channel current in total: 6A
- Dimming mode: Leading edge, trailing edge
- Dimming curves: Linear, 1.5 exponent, 2.0 exponent, 3.0 exponent
Approved:
- CE
- RoHS
Product Information:
- Dimensions: 216�90�66 (mm)
- Weight: 901.5(g)
- Housing material: nylon,PC
- Installation: 35mm DIN rail installation
