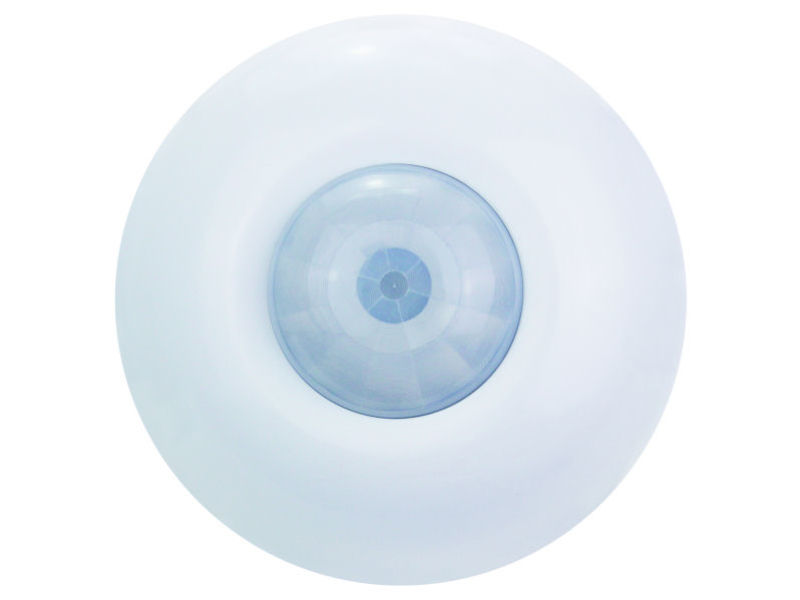

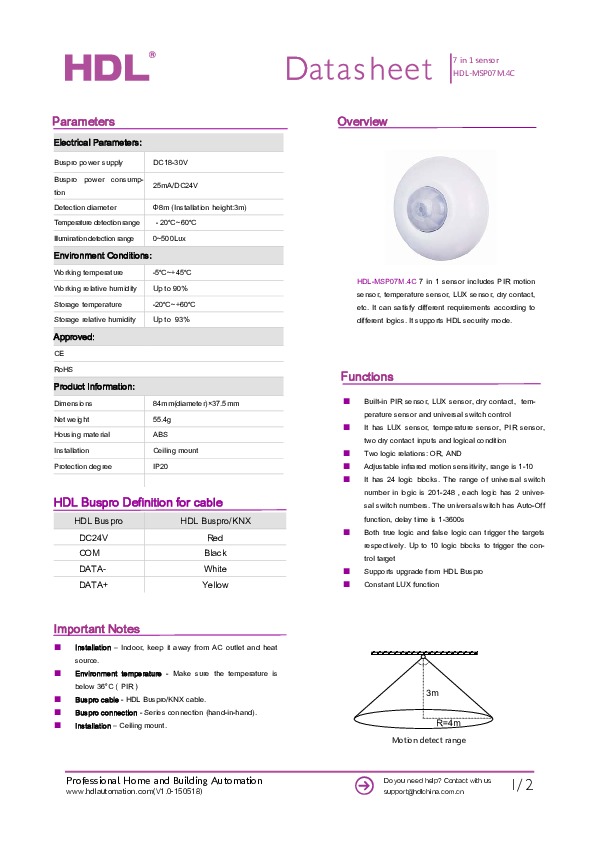

HDL Ceiling Mounted Sensor (7in1)

The HDL-MSP07M.4C is capable of detecting temperature, Lux, and motion. The functionality of this module is further extended by its ability to control multiple targets, accept 2 dry contact inputs, and 2 universal switches.

Multifunctional sensor:
The module is capable of providing 7 functions in one compact, and easy to install package. The HDL-MSP07M.4C can detect temperature, Lux, motion and dry contact, and even combine sensor information. This combination approach is employed by the module to extend the detection range of the motion and ultrasound sensors.

Multiple logic controlled applications:
With 24 logic blocks users can create a diverse range of applications, which meet the needs of multiple situations. A common application often created is for room management, this allows the system to know if the room is occupied or vacant. If a sensor in the room detects movement, it will send a command to the HDL Buspro system to activate the HAVC, TV, Music, etc., to automatically create a comfortable and relaxed atmosphere.

Consistent illumination:
The Lux sensor is able to automatically maintain a constant level of illumination by adjusting dimmable lights, this ensures that fluctuations in ambient light are negligible. This feature is of particular use in libraries, hospitals, and offices where constant lighting levels are essential.

Security integration:
The HDL-MSP07M.4C can be seamlessly integrated with HDL security solutions. This is made possible by the modules two dry contact inputs, these inputs could be connected to a door or window. If a door or window is left open for an extended period, the dry contact can automatically trigger the integrated HDL solutions.

Functions:

• Built-in infrared motion sensor, LUX sensor, dry contact, temperature sensor and universal switch control
• Seven logics for brightness sensor, temperature sensor, PIR sensor, two dry contact inputs and logical condition
• Two logic relations: OR, AND
• Adjustable infrared motion sensitivity, range from 1-10
• It has 24 logic blocks. The range of universal switch number in logic function is 201-248, each logic has 2 universal switch number. The universal switch has Auto-Off function, delay time is 1-3600s
• Logic can trigger the control target no matter it?s valid or not. Up to 10 logic block functions to trigger the control target
• Supports upgrade from HDL Buspro
• Constant illuminance function

Electrical Parameters:

• Buspro power supply: DC18-30V
• Buspro power consumption: 25mA/DC24V
• Detection diameter: ?8m (Installation height:3m)
• Temperature detection range: -20?~60?
• Illumination detection range: 0~500Lux

Approved:

• CE
• RoHS

Product Information:

• Dimensions: 84mm(diameter)�37.5mm
• Net weight: 55.4g
• Housing material: ABS
• Installation: Ceiling mount
• Protection degree: IP20
