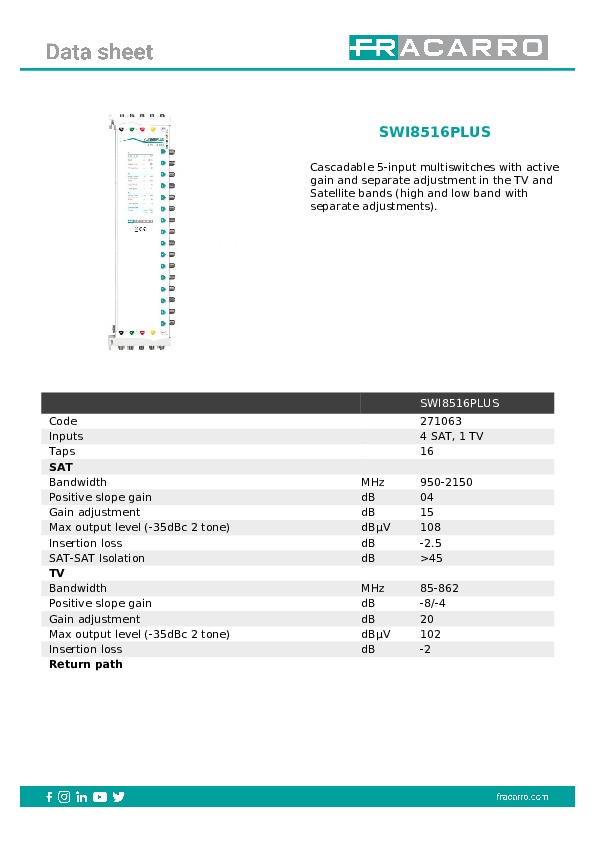

Cascadable 5-input multiswitches with active gain and separate adjustment in the TV and Satellite bands (high and low band with separate adjustment
Description
Inputs: 4 SAT, 1 TV
Taps: 16nts).
Satellite
Bandwidth MHz: 950-2150
Positive slope gain dB: 04
Gain adjustment dB: 15
Max output level (-35dBc 2 tone) dBµV: 108
Insertion loss dB: -2.5
SAT-SAT Isolation dB: >45
Terrestrial
Bandwidth MHz: 85-862
Positive slope gain dB: -8/-4
Gain adjustment dB: 20
Max output level (-35dBc 2 tone) dBµV: 102
Insertion loss dB: -2
Return path
Bandwidth MHz: 5-65
Gain dB: -6
Insertion loss dB: 1
Maximum level output (-35dBc 2 tones) dBµV: 100
Features
Current consumption mA,V: 220, 14 170, 18
Dimensions (w x d x h) mm: 425x120x30
Operating Temperature °C: -10 to +55
