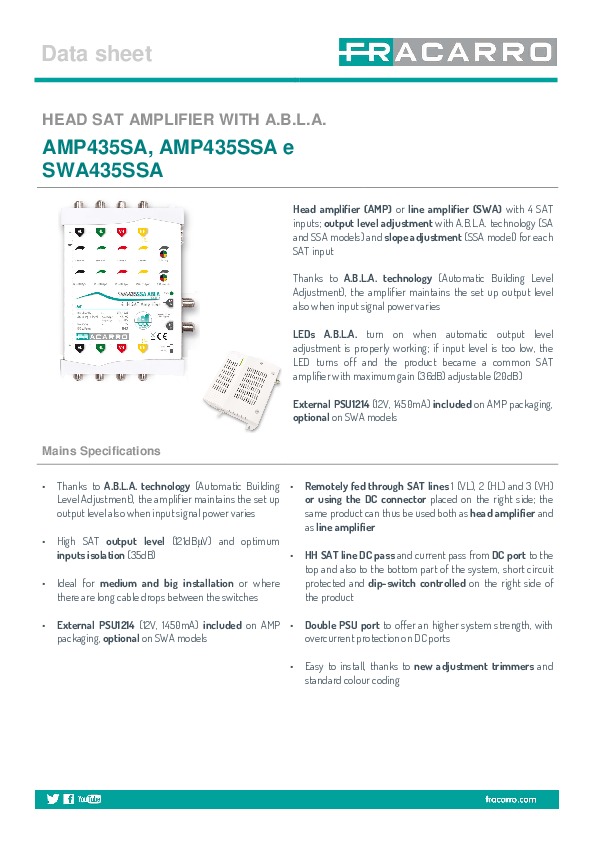

Head amplifier (AMP) or line amplifier (SWA) with 4 SAT inputs; output level adjustment with A.B.L.A. technology (SA and SSA models) and slope adjustment (SSA model) for each SAT input
With A.B.L.A. technology (Automatic Building Level Adjustment), the amplifier maintains the set up output level also when input signal power varies
LEDs A.B.L.A. turn on when automatic output level adjustment is properly working; if input level is too low, the LED turns off and the product became a common SAT amplifier with maximum gain (36dB) adjustable (20dB)
External PSU1214 (12V, 1450mA) included on AMP packaging, optional on SWA models
Main features:
- High SAT output level (121dBμV) and optimum inputs isolation (35dB)
- Ideal for medium and big installation or where there are long cable drops between the switches
- External PSU1214 (12V, 1450mA) included on AMP packaging, optional on SWA models
- Remotely fed through SAT lines 1 (VL), 2 (HL) and 3 (VH) or using the DC connector placed on the right side; the same product can thus be used both as head amplifier and as line amplifier
- HH SAT line DC pass and current pass from DC port to the top and also to the bottom part of the system, short circuit protected and dip-switch controlled on the right side of the product
- Double PSU port to offer an higher system strength, with overcurrent protection on DC ports
- Easy to install, thanks to new adjustment trimmers and standard colour coding
May need a 271159 or 277140 PSU for larger systems.
