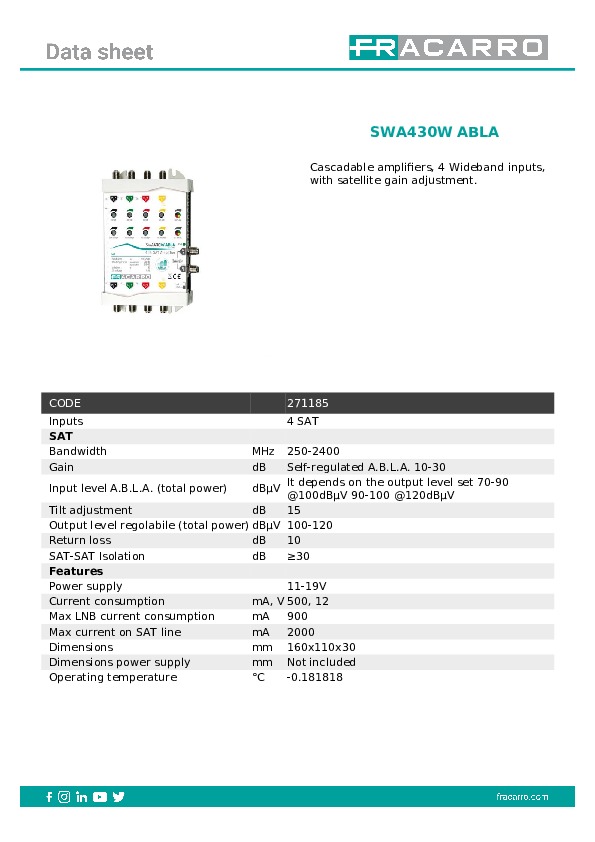

Cascadable amplifiers, 4 Wideband inputs, with satellite gain adjustment.
- Inputs: 4 SAT
SAT
Bandwidth MHz: 250-2400
Gain dB: Self-regulated A.B.L.A. 10-30
Input level A.B.L.A. (total power) dBµV: It depends on the output level set 70-90 @100dBµV 90-100 @120dBµV
Tilt adjustment dB: 15
Output level regolabile (total power) dBµV: 100-120
Return loss dB: 10
SAT-SAT Isolation dB: ≥30
Power supply: 11-19V
Current consumption mA, : 500, 12
Max LNB current consumption mA: 900
Max current on SAT line mA: 2000
Dimensions mm: 160x110x30
Dimensions power supply mm: Not included
Operating temperature °C: 0.181818
