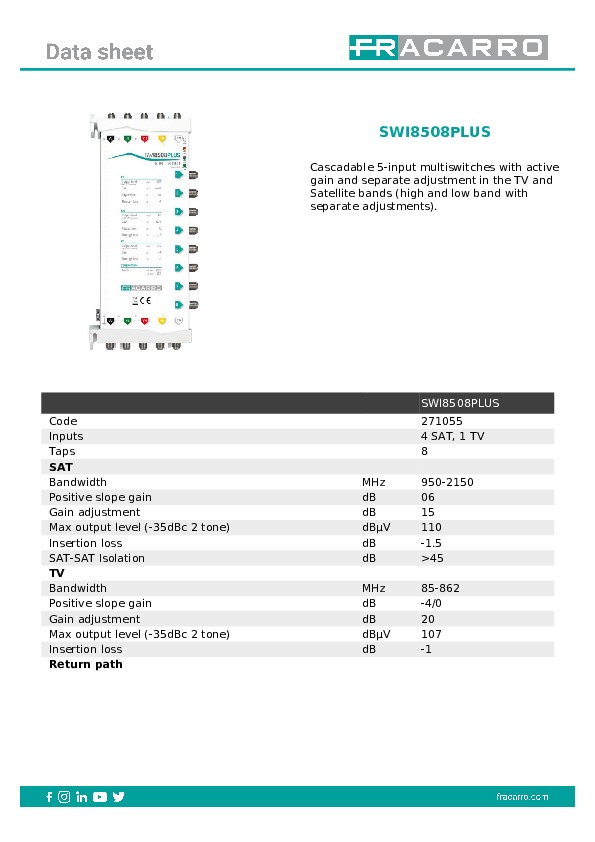

Cascadable 5-input multiswitches with active gain and separate adjustment in the TV and Satellite bands (high and low band with separate adjustments).
Satellite
Bandwidth MHz: 950–2150
Positive slope gain dB: 06
Gain adjustment dB: 15
Max output level (-35dBc 2 tone) dBµV: 110
Insertion loss dB: -1.5
SAT-SAT Isolation dB: >45
TV
Bandwidth MHz: 85–862
Positive slope gain dB: -4/0
Gain adjustment dB: 20
Max output level (-35dBc 2 tone) dBµV: 107
Insertion loss dB: -1
Return path
Bandwidth MHz: 5–65
Gain dB: -4
Max output level (-35dBc 2 tone) dBµV: 100
Insertion loss dB: -1
Features
Current consumption mA, V: 220, 14 170, 18
Dimensions mm: 260x120x30
Operating Temperature °C: -10 to +55
