FRACARRO SCD2-4416ADPUK Sky Q™ 2+2 Adaptor

Installer Notes: This unit needs local power. Please only connect 1 input lead, Sky Q should then be put into dSCR/SCR mode - NB: Connecting 2 leads will render the unit not able to work. To avoid isolation issues between adjacent ports (now a known issue) please connect the unit to alternate ports of the multiswitch and not those adjacent.
_______________________________________________

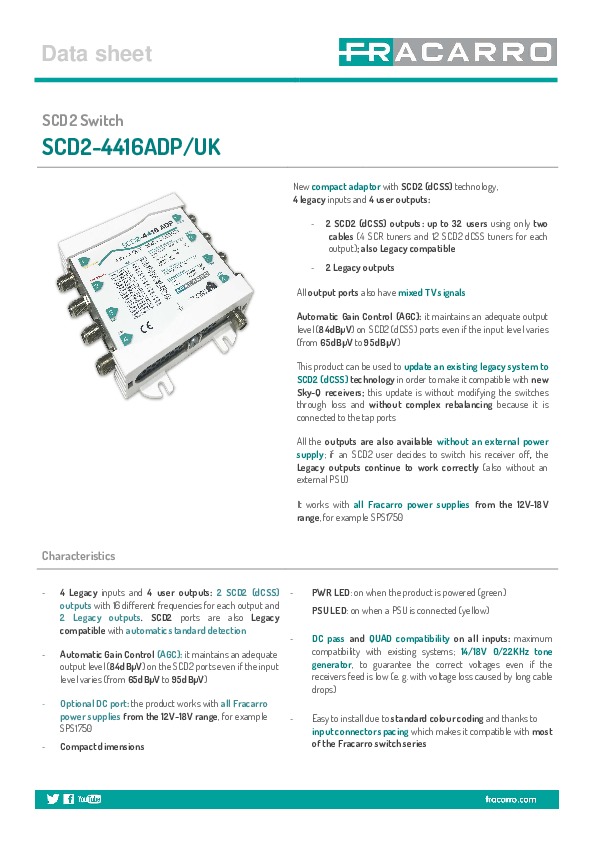

New compact adaptor with SCD2 (dCSS) technology, 4 legacy inputs and 4 user outputs:

• 2 SCD2 (dCSS) outputs: up to 32 users using only two cables (4 SCR tuners and 12 SCD2 dCSS tuners for each output); also Legacy compatible
• 2 Legacy outputs

All output ports also have mixed TV signals
Automatic Gain Control (AGC): it maintains an adequate output level (84dBµV) on SCD2 (dCSS) ports even if the input level varies (from 65dBµV to 95dBµV)
This product can be used to update an existing legacy system to SCD2 (dCSS) technology in order to make it compatible with new Sky-Q receivers; this update is without modifying the switches
through loss and without complex rebalancing because it is connected to the tap ports
All the outputs are also available without an external power supply; if an SCD2 user decides to switch his receiver off, the Legacy outputs continue to work correctly (also without an external PSU)
It works with all Fracarro power supplies from the 12V-18V range, for example SPS1750
