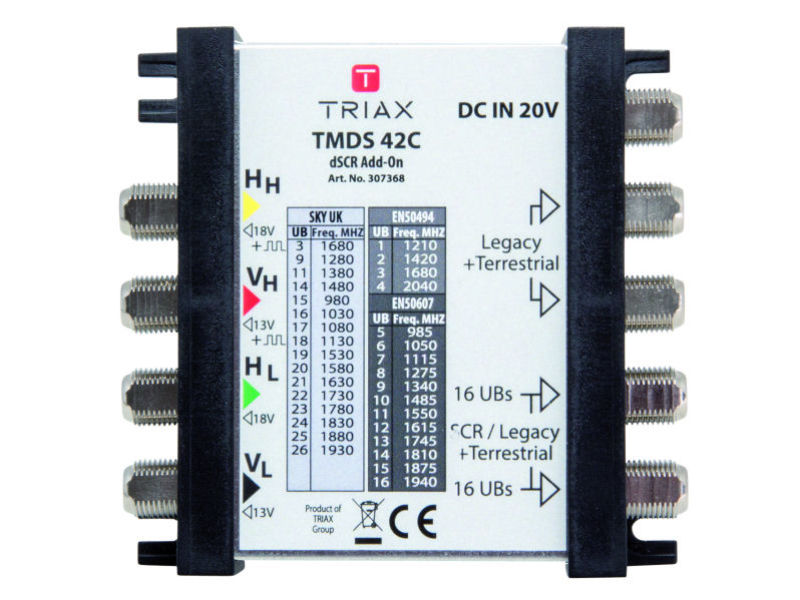

TRIAX TMDS42C Sky Q™ 2+2 Way Adaptor

4 In 4 Out x2 dSCR x2 Legacy OR x4 Legacy
(Requires a PSU: D000342 + F771005)
*Sky Compatible 2 Year Warranty

SKU: 307368

TRIAX TMDS42C Sky Q™ 2+2 Way Adaptor

4 In 4 Out x2 dSCR x2 Legacy OR x4 Legacy
(Requires a PSU: D000342 + F771005)
*Sky Compatible 2 Year Warranty


Installer Notes: This unit needs local power. Please only connect 1 input lead, Sky Q should then be put into dSCR/SCR mode - NB: Connecting 2 leads will render the unit not able to work. To avoid isolation issues between adjacent ports (now a known issue) please connect the unit to alternate ports of the multiswitch and not those adjacent.
_______________________________________________
TMDS 42 C dSCR Multiswitch
Main features:

  • Mini dSCR stand alone Multiswitch (external power supply required)
  • dSCR Multiswitch fits on to existing Multiswitches, Optical converters or can be used as a unique "stand alone" installation, offering a simple solution to Sky Q enablement
  • Expands existing systems without complex re-balancing
  • Provides 2 x Fixed Legacy outputs

•Provides 2 x dSCR or Legacy outputs

  • Auto-detection Legacy / dSCR
  • Terrestrial, FM, DAB signal path
  • AGC
  • Quad / Quattro compatible
  • Ideal for SDU New Build or upgrade without the need to change existing LNB's or Multiswitches

CHARACTERISTICS
Input level: max. 65...95 dBµV
dSCR output level: 85 dBµV
Switch commands: 13 V / 18 V / 22 KHz
ELECTRICAL
Impedance: 75 Ω
CONNECTORS
Number of inputs: 4
Number of outputs: 2x Legacy fix + 2 x dSCR/Legacy autodetect
Number of SCR / STB per Output: 16
FREQUENCY
Frequency range TER: 40...790 MHz
Frequency range SAT: 950...2150 (@legacy) 950...2150 (@SCR user bands) MHz
LOSS
Insertion loss (typ.): 0 (@Legacy only ports) dB
Insertion loss - SAT: -10...20 (@SAT input to SCR - AGC) dB
Insertion loss - TER: -4 dB
OPERATIONAL
DC Operating voltage: 12...20 VDC
DC Current consumption: 600 (@20Vdc) mA
PSU/adapter Art number: 300374
Temperature - operating: -20...50 °C
MECHANICAL
Product Height: 92 mm
Product Length: 92 mm
Product Width: 40 mm
