The EL-IPD-AMP-EXT Multi Zone Audio Extender complements the ELAN IP amplifier and preamps to add up to 8 zones of audio over existing networks using Dante™.
It is used in conjunction with an amplifier or preamp in the ELAN family of IP enabled amps to add up to 8 zones of audio.
Configure speaker outputs as left, right, or mono with single or multiple speakers connected to each. Four line level audio outputs can be configured as left, right, mono, or subwoofer out.
Each output or combination of outputs can be configured as separate zones with EQ and lip sync delay applied to any zone individually.

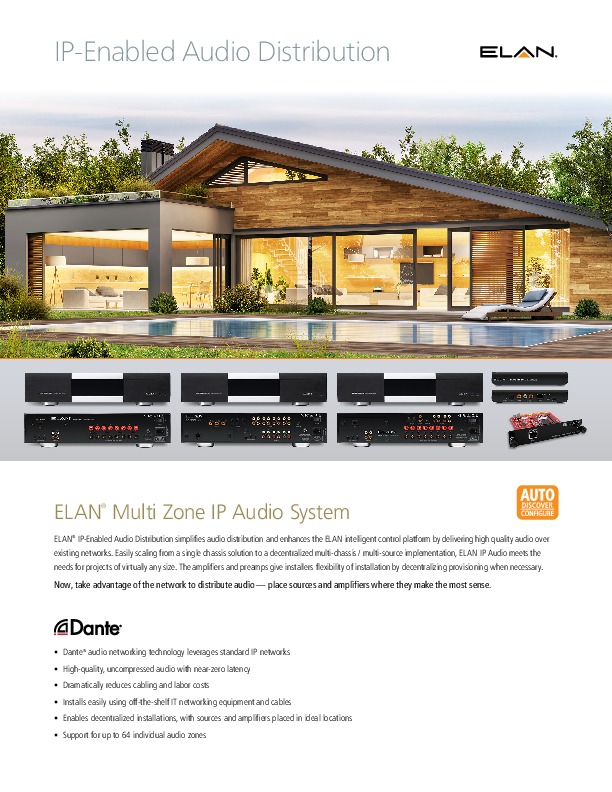

ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by delivering high quality audio over the existing network. Easily scaling from a single chassis solution to a decentralized multi-chassis / multi-source implementation, ELAN IP audio distribution meets the needs for projects of up to 64 individual zones.
- 4 Stereo or 8 Mono Ampli?ed Zones and 2 Stereo or 4 Mono Pre-amp Zones
- 80WPC at 8Ω, 100WPC at 4Ω
- DSP with 5-Band EQ for Each Zone
- Lip Sync Correction
- Dante Audio Networking
SPECIFICATIONS
Line Level Audio Outputs
- 2 Stereo / 4 Mono Analog RCA Pre-amp Outputs
- Configurable to Left, Right, Mono, or Sub-woofer
- Fixed or variable line level output
- Fixed: 0dB nominal gain
- Variable: -50 to +0dB at 0.5dB per step
- Unbalanced
- Output impedance: 470 Ω
Amplifier Output
- 4 Stereo / 8 Mono Amplifier Outputs
- Configurable to Left, Right, or Mono
- Output Power: 80W at 8Ω
- 100W at 4Ω
- THD: < 0.05% @ 1kHz
- Frequency Response: 20Hz to 20kHz, +.5dB/-.5dB
- Crosstalk: >60dB @ 1kHz/1W
- Signal to Noise: >100dB
- Lip Sync Delay: Individual Lip Sync Delay for each Speaker and Preamp Zone
- Delay Time: 0 – 400ms
- Adjustable: 10ms increments
Tone Control
- Individual Tone Control for Each Speaker and Preamp Zone
- Five-band equalizer
- Loudness on/off
- High/Low pass
- Adjustable Crossover Points
Trigger Outputs
- 3.5mm Mono
- Zone Trigger / System Trigger Outputs
- Pinout: Tip = signal, Sleeve = ground
- Output: +12Vdc, 100mA current limit
Network
- 1 RJ45 Jack 100/1000 Ethernet DHCP Enabled by Default
Power
- AC 100-120 / 220-240 V~ 50/60Hz, 1000W
Temperature
- Operating Temperature: +5° C – +45° C (+41°F – +113°F)
- Operating Humidity: 0 – 90% non-condensing
- Storage Temperature: 0° C – +60° C (32°F – +140°F)
Dimensions
- 17D X 17W X 4H in. / 431.8D X 431.8W X 101.6H mm (with feet)
- 17D X 17W X 3.5 in. / 431.8D X 431.8W X 88.9H mm (without feet)
- Weight: 21.35 lbs / 9.68 Kg
