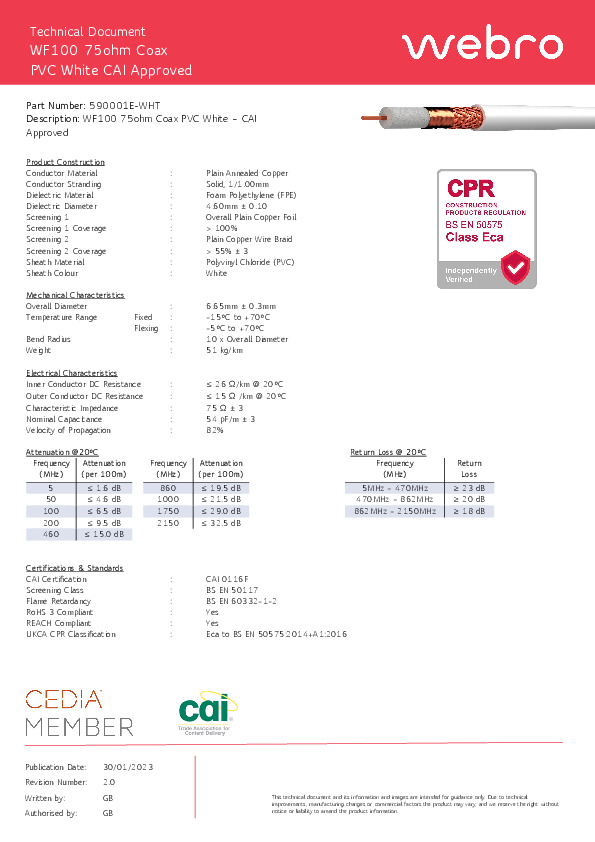

Specified To Meet En 50117 with a watertight dielectric, this 75 Ohm cable Is ideal for use where water ingress might be a problem.
Drum size: 100m
Cable colour: White
MECHANICAL CHARACTERISTICS
Construction:
Inner Conductor: 1.00mm Plain Annealed Copper
Dielectric: Foamed Polyethylene Insulation
Screen: Plain Copper Foil Tape
Screen: Plain Copper Wire Braid
Insulation Diameter: 4.80mm (Natural)
Sheath Diameter: 6.55 + 0.30mm
Storage/Operating Temperature: -15°C to +70°C
Minimum Installation Temperature: -5°C
Sheathing Material: PVC
ELECTRICAL CHARACTERISTICS
DC Resistance Inner Conductor: ≤ 26 Ω/km @ 20°C
DC Resistance Outer Conductor: ≤ 15 Ω/km @ 20°C
Characteristic Impedance: 75 ± 3Ohm
Capacitance: 55pF/m (nominal)
Velocity Ratio: 0.81
Attenuation (d/B 100m @ 20°C)
5MHz: <1.60
50MHz: <4.60
100MHz: <6.50
200MHz: <9.50
460MHz: <15.0
860MHz: <19.5
1000MHz: <21.5
1750MHz: <29.0
2400MHz: <32.9*
3000MHz: <37.8*
Return Loss:
5-470MHz: >23
470-862MHz: >20
862-2150MHz: >18
2150-3000MHz: >18
