TRIAX cables are designed to meet the standards of today and the network demands of tomorrow. Highly shielded to minimise interference, each one has been meticulously updated and rigorously tested to conform to the new EN50575 fire safety standard.
Maximum performance - cable is suited for the most demanding installations and offer:
MAIN FEATURES
- High levels of interference protection
- Crystal clear HD & 4K TV images
- Up and downstream data transmission
- Exceptional build quality and durability
- Cost effective solution to meet the new Regulation
Maximum safety, EN50575 compliant - all TRIAX cables are fully tested and classified according to the EN50575 Construction Products Regulation (CPR), in force from 1 July 2017, so they:
- Meet the high demands for safety in case of fire
- Are suitable for internal and external installation

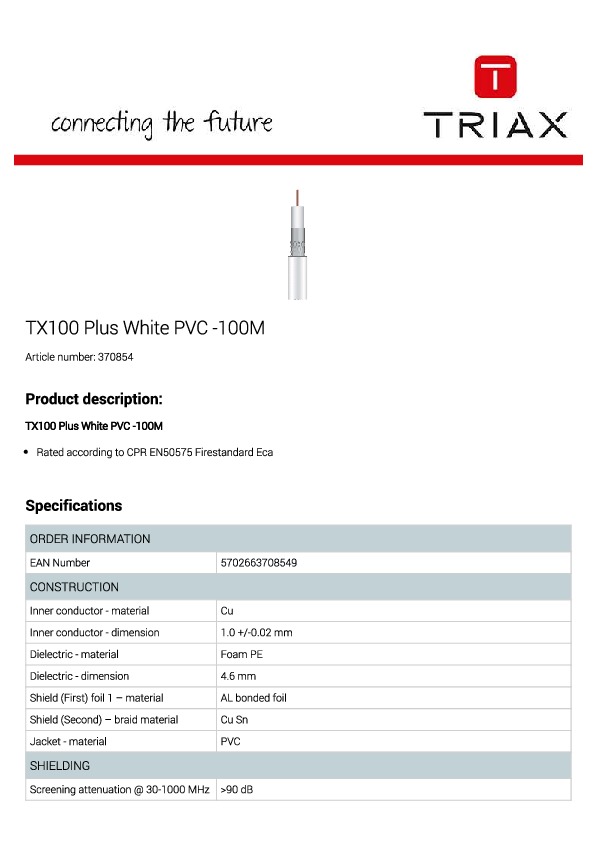

CONSTRUCTION
Inner conductor - material: Cu
Inner conductor - dimension: 1.0 +/-0.02 mm
Dielectric - material: Foam PE
Dielectric - dimension: 4.6 mm
Shield (First) foil 1 - material: AL bonded foil
Shield (Second) - braid material: Cu Sn
Jacket - material: PVC
SHIELDING
Screening attenuation @ 30-1000 MHz: >90 dB
Screening attenuation @ 1000-2000 MHz: >75 dB
Screening attenuation @ 2000-3000 MHz: >72 dB
CHARACTERISTICS
Type: COAX 7mm
LOSS
Attenuation (at 20°C) @ 5 MHz: 2.0 dB
Attenuation (at 20°C) @ 50 MHz: 4.2 dB
Attenuation (at 20°C) @ 100 MHz: 6.5 dB
Attenuation (at 20°C) @ 200 MHz: 8.7 dB
Attenuation (at 20°C) @ 470 MHz: 13.3 dB
Attenuation (at 20°C) @ 862 MHz: 18.4 dB
Attenuation (at 20°C) @ 1000 MHz: 19.9 dB
Attenuation (at 20°C) @ 1750 MHz: 26.9 dB
Attenuation (at 20°C) @ 2150 MHz: 30.3 dB
RETURN LOSS
Structural return loss @ 5-470 MHz: >30 dB
Structural return loss @ 470-862 MHz: >28 dB
Structural return loss @ 862-2400 MHz: >25 dB
ELECTRICAL
Impedance: 75 Ω
Capacity: 53 pF/m
Velocity ratio: 83 %
Inner DC resistance: <26 Ω/km
Outer DC resistance: <15 Ω/km
OPERATIONAL
Application: Indoor
Fire Class: Eca
DoP number: TR0021
Notified Body: 1014
Screening Efficiency: EN50117 (Class B)
MECHANICAL
Cable length: 100 m
Minimum bending radius: 40 mm
Colour: White
Net Weight: 15,000 kg
Tara Weight: 0,200 kg
Total Weight: 5,200 kg
