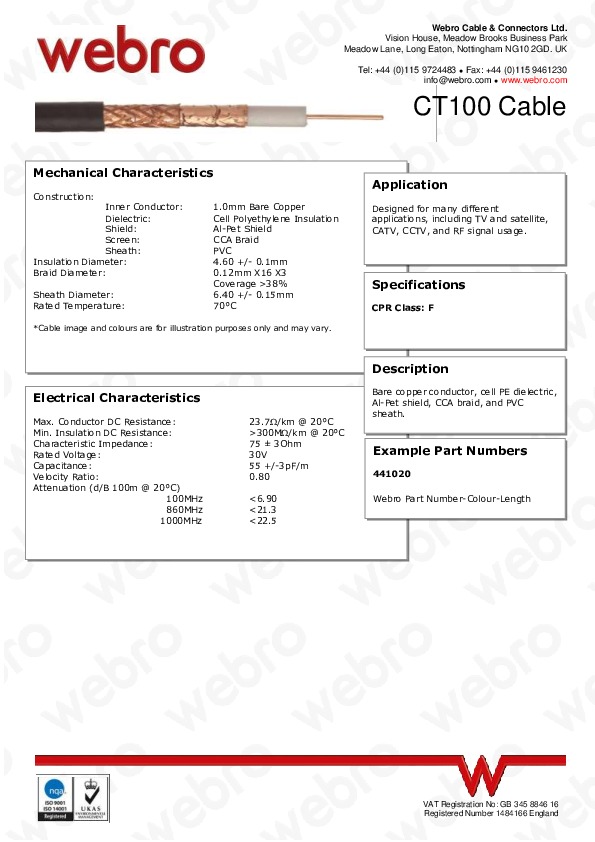

Designed for many different applications, including TV and satellite, CATV, CCTV, and RF signal usage.
Bare copper conductor, cell PE dielectric, Al-Pet shield, CCA braid, and PVC sheath.
Mechanical Characteristics
Inner Conductor: 1.0mm Bare Copper
Dielectric: Cell Polyethylene Insulation
Shield: Al-Pet Shield
Screen: CCA Braid
Insulation Diameter: 4.60 +/- 0.1mm
Braid Diameter: 0.12mm x16 x3 Coverage >38%
Sheath Diameter: 6.40 +/- 0.15mm
Rated Temperature: 70degC
Electrical Characteristics
Max. Conductor DC Resistance: 23.7ohm/km @ 20degC
Min. Insulation DC Resistance: >300Mohm/km @ 30degC
Characteristic Impedance: 75 +- 3ohm
Rated Voltage: 30v
Capacitance: 55 +/-3pF/m
Velocity Ratio: 0.80
Attenuation (d/B 100m @ 20degC)
100Mhz <6.90
860Mhz <21.3
1000Mhz <22.5
*Cable image and colours are for illustration purposes on and may vary.
