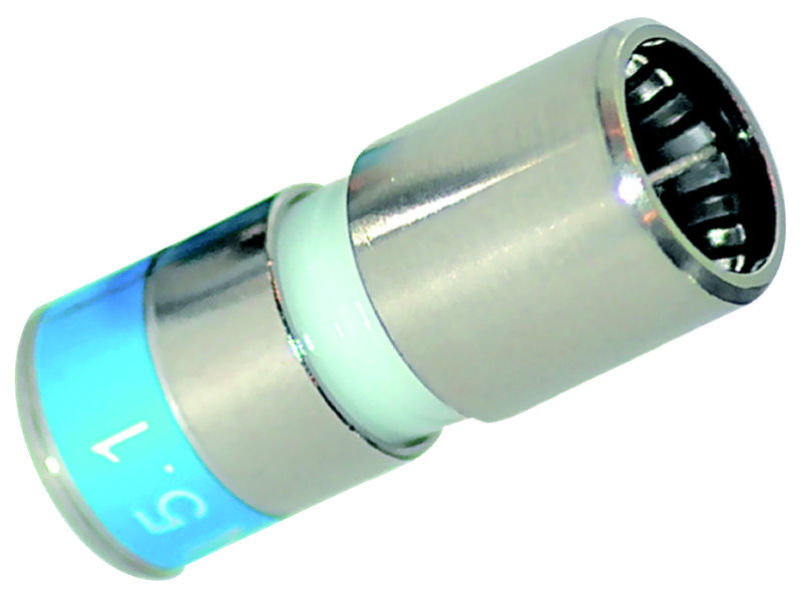

(100) CABELCON Compression F Plug 1mm A+

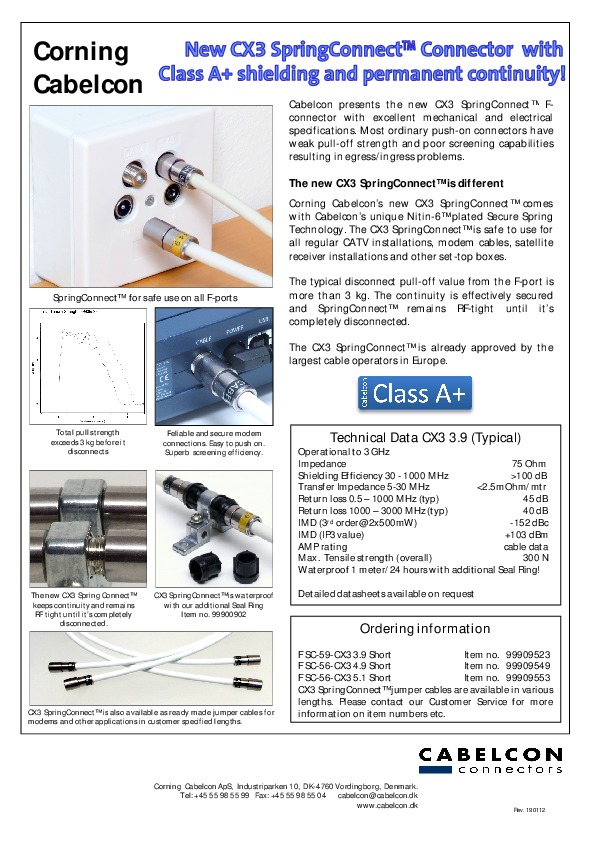

Cabelcon presents the new CX3 SpringConnect™ F connector with excellent mechanical and electrical specifications.
Most ordinary push-on connectors have weak pull-off strength and poor screening capabilities resulting in egress/ingress problems. The new CX3 SpringConnect™ is different.
Corning Cabelcon’s new CX3 SpringConnect™ comes with Cabelcon’s unique Nitin-6™ plated Secure Spring Technology.
The CX3 SpringConnect™ is safe to use for all regular CATV installations, modem cables, satellite receiver installations and other set-top boxes.
The typical disconnect pull-off value from the F-port is more than 3 kg. The continuity is effectively secured and SpringConnect™ remains RF-tight until it’s completely disconnected.
The CX3 SpringConnect™ is already approved by the largest cable operators in Europe.
Compatible with the following Compression tools:
55-98029072
55-98029075
Technical Data CX3 3.9 (Typical)

• Operational to 3 GHz
• Impedance 75 Ohm
• Shielding Efficiency 30 - 1000 MHz >100 dB
• Transfer Impedance 5-30 MHz <2.5mOhm/mtr
• Return loss 0.5 – 1000 MHz (typ) 45 dB
• Return loss 1000 – 3000 MHz (typ) 40 dB
• IMD (3rd order@2x500mW) -152 dBc
• IMD (IP3 value) +103 dBm
• AMP rating cable data
• Max. Tensile strength (overall) 300 N
• Waterproof 1 meter/24 hours with additional Seal Ring!
