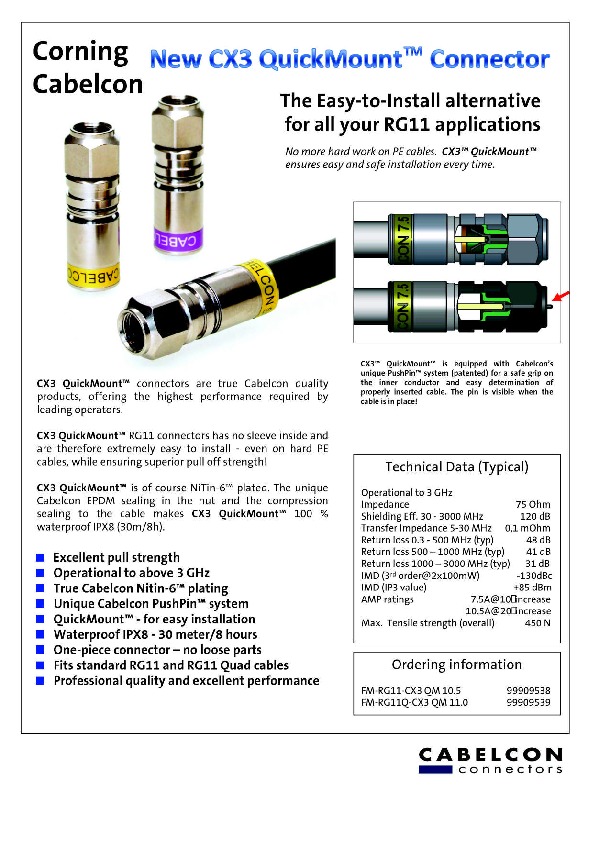

(1) CABELCON Compression F Plug 1.65mm

Compression Connector

• CX3 QuickMount™ connectors are true Cabelcon quality products, offering the highest performance required by leading operators.
• CX3 QuickMount™ RG11 connectors has no sleeve inside and are therefore extremely easy to install - even on hard PE cables, while ensuring superior pull off strength!
• CX3 QuickMount™ is of course NiTin-6™ plated. The unique Cabelcon EPDM sealing in the nut and the compression sealing to the cable makes CX3 QuickMount™ 100 % waterproof IPX8 (30m/8h).

Extended Details

• Excellent pull strength
• Operational to above 3 GHz
• True Cabelcon Nitin-6™ plating
• Unique Cabelcon PushPin™ system
• QuickMount™ - for easy installation
• Waterproof IPX8 - 30 meter/8 hours
• One-piece connector – no loose parts
• Fits standard RG11 and RG11 Quad cables
• Professional quality and excellent performance

Technical Data (Typical)

• Operational to 3 GHz
• Impedance 75 Ohm
• Shielding Eff. 30 - 3000 MHz 120 dB
• Transfer Impedance 5-30 MHz 0,1 Ohm
• Return loss 0.3 - 500 MHz (typ) 48 dB
• Return loss 500 – 1000 MHz (typ) 41 dB
• Return loss 1000 – 3000 MHz (typ) 31 dB
• IMD (3rd order@2x100mW) -130dBc
• IMD (IP3 value) +85 dBm
• AMP ratings 7.5A@10°increase 10.5A@20°increase
• Max. Tensile strength (overall) 450 N

Tool Required

• Use Code # 26628 (55-98029072)
