WHYTE Series A 4 Set Amp IRS Loop-Through

1 In TERR/IRS 4 Out TERR 10dB Gain LTE700
4 Year Warranty *New Model*

SKU: ADA104

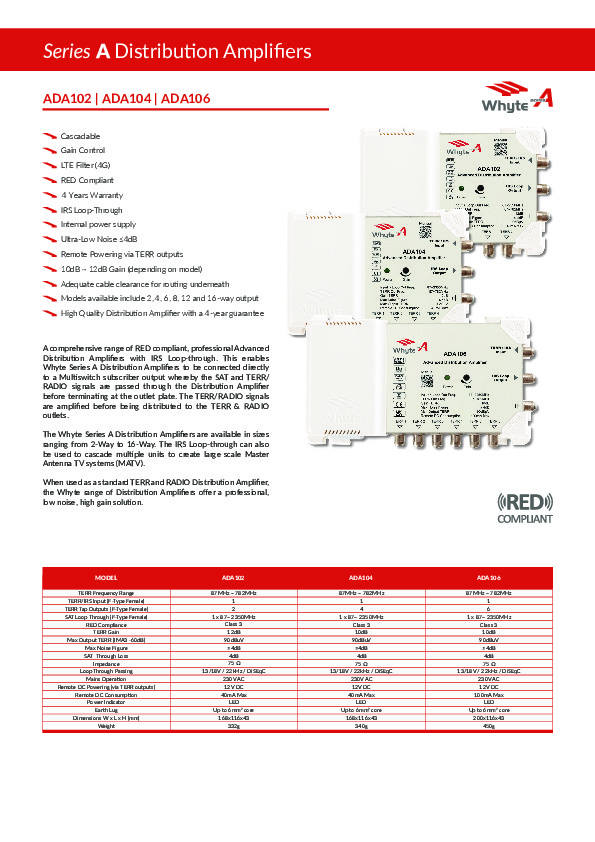

  Product Documents

WHYTE Series A 4 Set Amp IRS Loop-Through

1 In TERR/IRS 4 Out TERR 10dB Gain LTE700
4 Year Warranty *New Model*


The latest version of these popular “Advanved Distribution Amps” see's in update in the frequency band. The newer LTE700 versions includes 5G filtering that results in a tighter terrestrial frequency acceptance band of 87MHz ~ 694MHz

A comprehensive range of RED compliant, professional Advanced Distribution Amplifiers with IRS Loop-through.
This enables Whyte Series A Distribution Amplifiers to be connected directly to a Multiswitch subscriber output whereby the SAT and TERR/RADIO signals are passed through the Distribution Amplifier before terminating at the outlet plate. The TERR/RADIO signals are amplified before being distributed to the TERR & RADIO outlets.

The Whyte Series A Distribution Amplifiers are available in sizes ranging from 2-Way to 16-Way. The IRS Loop-through can also be used to cascade multiple units to create large scale Master Antenna TV systems (MATV). When used as a standard TERR and RADIO Distribution Amplifier, the Whyte range of Distribution Amplifiers offer a professional, low noise, high gain solution.

Main Features:

  • Cascadable
  • LTE Filter (5G)
  • Gain Control
  • RED Compliant
  • IRS Loop-Through
  • Internal power supply
  • Ultra-Low Noise ≤4dB
  • Remote Powering via all outputs
  • 10dB ~ 12dB Gain (depending on model)
  • Adequate cable clearance for routing underneath
  • Models available include 2, 4, 6, 8, 12 and 16-way output
  • High Quality Distribution Amplifier with a 4-year guarantee

Specifications:

TERR Frequency Range87MHz ~ 694MHz
TERR/IRS Input (F-Type Female)1
TERR Tap Outputs (F-Type Female)4
SAT Loop Through (F-Type Female)1 x 87~ 2350MHz
RED ComplianceClass 3
TERR Gain10dB
Max Output TERR (IMA3 -60dB)90dBuV
Max Noise Figure≤4dB
SAT Through Loss4dB
Impedence75 Ω
Loop Through Passing13/18V / 22kHz / DiSEqC
Mains Operation230V AC
Remote DC Powering (via TERR outputs)12V DC
Remote DC Consumption40mA Max
Power IndicatorLED
Earth LugUp to 6mm2 core
Dimensions W x L x H (mm)168x116x43
Weight340g
