WHYTE Series 9 Multiswitch 9x16

9 In 16 Out c/w Output Earth Bars Only
4 Year Warranty
*Special Order! NCNR - Check Lead Time*

SKU: WM916

  Product Documents

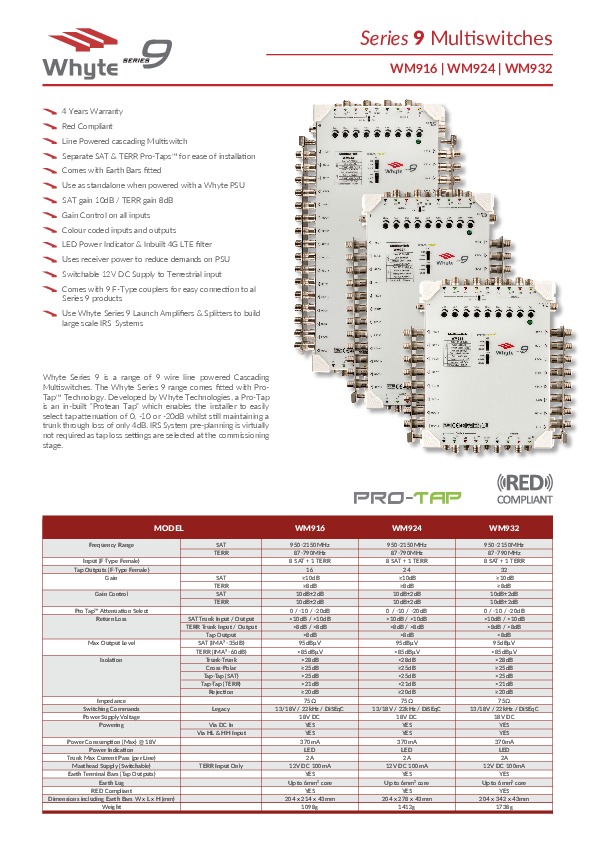

WHYTE Series 9 Multiswitch 9x16

9 In 16 Out c/w Output Earth Bars Only
4 Year Warranty
*Special Order! NCNR - Check Lead Time*


The Series 9 16-Way Standalone Multiswitch is is 9 wire line powered Cascading Multiswitch. It comes fitted with Pro-Tap Technology which enables the installer to easily select input tap losses of 0-10 or -20dB whilst maintaining a trunk through loss of only 4dB.

Main features:

  • Gain Control on all inputs
  • Comes with earth bars fitted
  • SAT Gain 10dB / TERR Gain 8dB
  • Colour coded inputs & outputs
  • Line Powered cascading Multiswitch
  • Switchable 12V DC Supply to Terr Input
  • LED Power indicator & Inbuilt LTE filter
  • Uses receiver power to reduce demands on PSU
  • Use As standalone when powered with a Whyte PSU
  • Separate SAT & TERR Pro-Taps for ease of installation
  • Comes with 9 F-Type couplers for easy connection to all Series 9 products
  • Use Whyte Series 9 Launch Amplifiers & Splitters to build large scale IRS Systems

Specifications:
Frequency Range: SAT 950-2150MHz | TERR 87-790MHz
4G LTE Filter: YES
Input (F-Type Female): 8 SAT + 1 TERR
Tap Outputs (F-Type Female): 16
Gain: SAT: ≥10dB | TERR:≥8dB
Gain Control: SAT 10dB±2dB | TERR 10dB±2dB
Protean Tap Attenuation: SAT & TERR 0/-10/20dB
Return Loss SAT Trunk Input/Output: SAT >10dB/>10dB | TERR >8dB/8dB
Return Loss Tap Output: >8dB
Max Output Level: SAT (IMA³ -35dB) 95dBμV | TERR (IMA³ -60dB) >85dBμV
Isolation: Trunk - Trunk >28dB | Cross Polar: ≥25dB | Tap-Tap SAT >25dB | Tap-Tap TERR >21dB | Rejection ≥20dB
Impedance: 75 Ohms
Switching Commands: Legacy 13/18V / 22kHz Tone / DiSEqC
Power Supply Voltage: 18V DC
Powering: Via DC Input / Via HL and HH Input
Power Consumption (Max)@18V: 330mA
Power Indication: LED
Trunk Max Current Pass (per SAT line): 2A
Masthead Power Supply (Switchable): TERR Input Only 12V DC 100mA
Earth Terminal Bars (Tap Outputs): Fitted
Earth Lug: Up to 6mm² Core
Dimensions Including Earth Bars (mm): 208 x 214 x 43
Weight: 1098g
