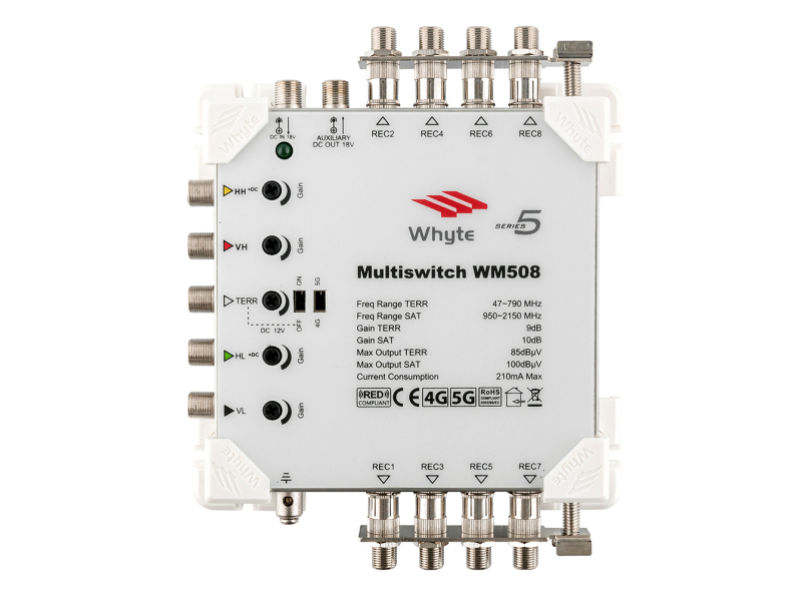

WHYTE Series 5 Multiswitch 5x8

5 In 8 Out c/w Output Earth Bars Only
4 Year Warranty

SKU: WM508

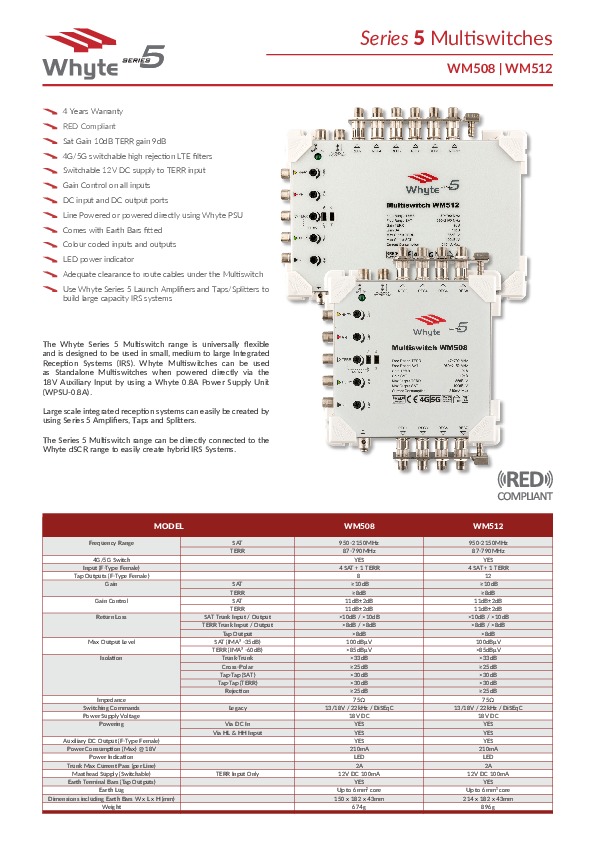

  Product Documents

WHYTE Series 5 Multiswitch 5x8

5 In 8 Out c/w Output Earth Bars Only
4 Year Warranty


The Whyte Series 5 Multiswitch range is designed to be universally flexible and can be used in small, medium and large Integrated Reception Systems (IRS). Whyte Multiswitches can be used as a standalone Multiswitch when powered directly via the 18V Auxiliary Input by using the Whyte 0.8A Power Supply Unit (model WPSU-0.8A).

Main Features:

  • Inbuilt LTE filter
  • LED power indicator
  • Line Powered Multiswitch
  • Gain Control on all inputs
  • Comes with Earth Bars fitted
  • SAT gain 10dB / TERR gain 8dB
  • Colour coded inputs and outputs
  • Use as standalone when powered with a Whyte PSU
  • Uses the receiver power to reduce demands on system PSU
  • Adequate clearance to route cables under the Multiswitch
  • Use Whyte Series 5 Launch Amplifiers and Taps/Splitters to build large capacity IRS Systems

Specifications:

Frequency Range:SAT 950-2150MHz | TERR 87-790MHz
4G/5G Switch:YES
Input (F-Type Female):4 SAT + 1 TERR
Tap Outputs (F-Type Female):8
Gain:SAT: ≥10dB | TERR:≥8dB
Gain Control:SAT 11dB±2dB | TERR 11dB±2dB
Return Loss SAT Trunk Input/Output:SAT >10dB/>10dB
TERR >8dB/8dB
Return Loss Tap Output:>8dB
Max Output Level:SAT (IMA³ -35dB) 100dBμV
TERR (IMA³ -60dB) >85dBμV
Isolation:Trunk - Trunk >33dB
Cross Polar: ≥25dB
Tap-Tap SAT >30dB
Tap-Tap TERR >30dB
Rejection ≥25dB
Impedance:75 Ohms
Switching Commands:Legacy 13/18V / 22kHz Tone
Power Supply Voltage:18V DC
Powering:Via DC Input / Via HL and HH Input
Auxiliary DC Output (F-Type Female:YES
Power Consumption (Max)@18V:210mA
Masthead Power Supply (Switchable):TERR Input Only 12V DC 100mA
Earth Terminal Bars (Tap Outputs):Fitted
Earth Lug:Up to 6mm² Core
Dimensions Incuding Earth Bars (mm):150 x 182 x 43
Weight:674g
