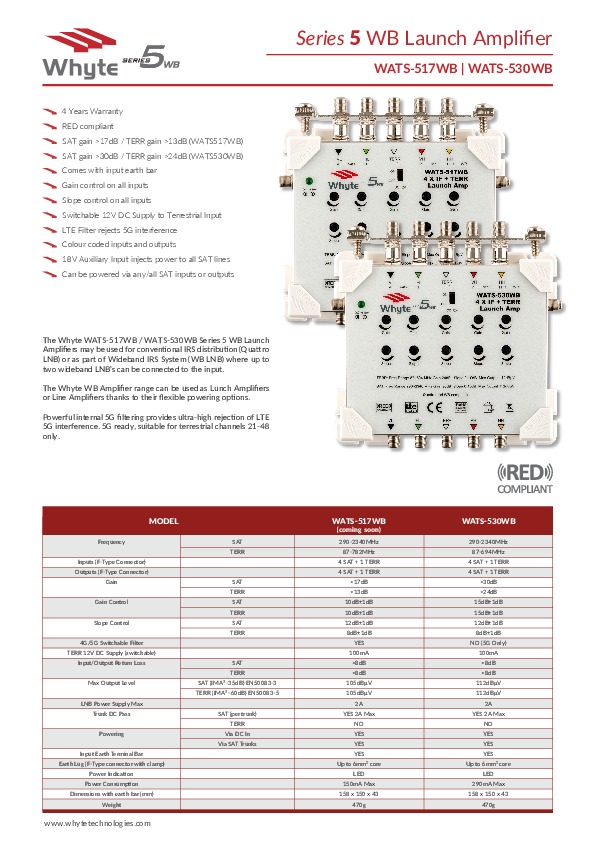

The Whyte Series 5 WB Launch Amplifier is a 5 wire Satellite and Terrestrial IRS Launch Amplifier with the option of Quattro or Dual Wideband LNB input.
The Whyte WATS-517WB Series 5 WB Launch Amplifiers may be used for conventional IRS distribution (Quattro LNB) or as part of Wideband IRS System (WB LNB) where up to two wideband LNB’s can be connected to the input.
The Whyte WB Amplifier range can be used as Launch Amplifiers or Line Amplifiers thanks to their flexible powering options.
Powerful 4G/5G filtering provides ultra-high rejection of LTE interference.
Main Features:
- 4G/5G Filter
- RED compliant
- 4 Years Warranty
- Gain control on all inputs
- Slope control on all inputs
- Comes with input earth bar
- Colour coded inputs and outputs
- Switchable 12V DC Supply to Terrestrial Input
- 18V Auxiliary Input injects power to all SAT lines
- Can be powered via any/all SAT inputs or outputs
- SAT gain >17dB / TERR gain >13dB (WATS-517WB)
Specifications:
| Frequency: | SAT 290-2340MHz TERR 87-790MHz |
| Inputs: | 4 SAT + 1 TERR |
| Outputs: | 4 SAT + 1 TERR |
| Gain: | SAT >17dB TERR >13dB |
| Gain Control: | SAT 10dB ±1dB TERR 10dB ±1dB |
| Slope Control: | SAT 12dB ±1dB TERR 8dB ±1dB |
| 4G/5G Switchable Filter: | YES |
| TERR 12V DC Masthead Supply (switchable): | 100mA |
| Input/Output Return Loss: | SAT >8dB TERR >8dB |
| Max Output Level SAT: | SAT (IMA³ -35dB) EN50083-3 105dBμV |
| Max Output Level TERR: | TERR (IMA³ -60dB) EN50083-5 105dBμV |
| LNB Power Supply Max: | 2A |
| SAT Trunk DC Pass: | YES 2A Max |
| TERR Trunk DC Pass: | NO |
| Powering: | Via DC Input Via SAT Trunks |
| Power Consumption: | 150mA Max |
| Dimensions Including Earht Bars (mm): | 158 x 150 x 43 |
| Weight: | 470g |
