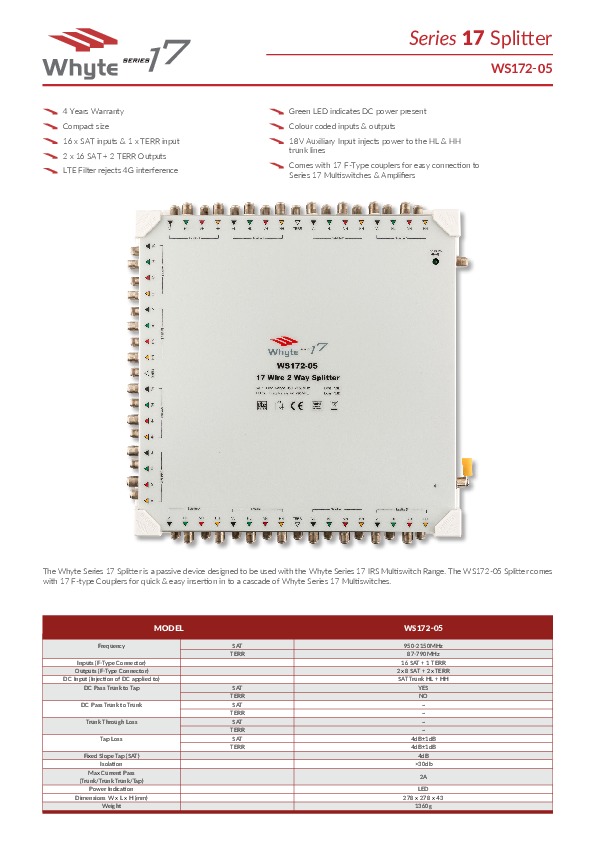

The Whyte Series 17 Splitter is a passive device designed to be used with the Whyte Series 17 IRS Multiswitch Range. The WS172-05 Splitter comes with 17 F-type Couplers for quick & easy insertion in to a cascade of Series 17 Multiswitches.
Main features:
- Compact size
- 16 SAT + 1 TERR Inputs
- 2 x 16 SAT + 1 TERR Outputs
- Colour coded inputs & outputs
- LTE Filter rejects 4G interference
- Green LED indicates DC power present
- 18V Auxiliary Input injects power to the HL & HH trunk lines
- Comes with 17 F-Type couplers for easy connection to Series 17 Multiswitches & Amplifiers
Specifications:
Frequency: SAT: 950-2150MHz | TERR: 87-790MHz
Inputs (F-Type Connector): 16 SAT + 1 TERR
Outputs (F-Type Connector): 2× 16 SAT | 2× 1 TERR
DC Input (Injection of DC applied to): SAT Trunk HL + HH
DC Pass Trunk To Tap: SAT: All | TERR: No
Tap Loss: SAT: 4dB±1dB | TERR: 4dB±1dB
Fixed Slope Tap: 4dB
Isolation: >30dB
Max Current Pass (Trunk/Trunk Trunk/Tap): 2A
Power Indication: LED
Dimensions (mm): 278 x 278 x 43
Weight: 1360g
