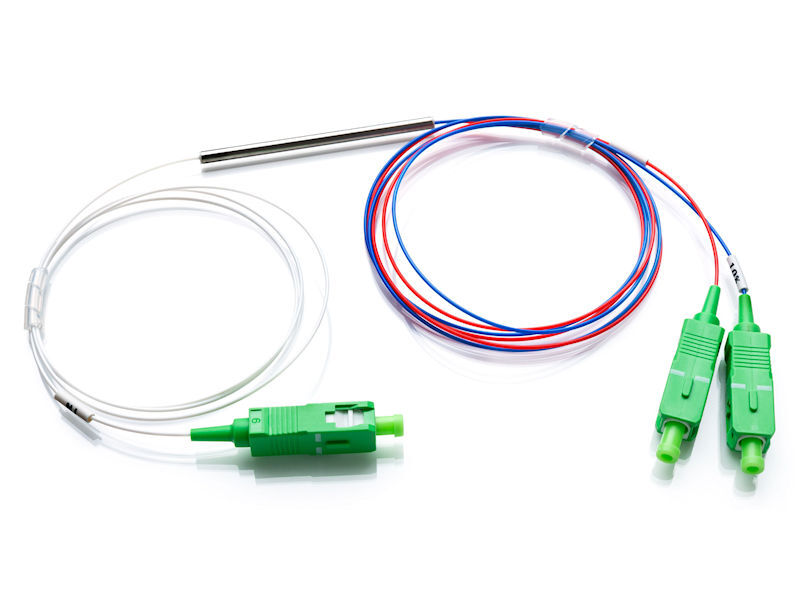

The Whyte mini optical taps offer an uneven split shown in percentage of light. In this case 60:40.
Output #1 - 60% of the light will go through leg #2 or approximately 2.8dB of loss.
Output #2 - 40% of the light will go through leg #2 or approximately 4.6dB of loss.
These mini taps are quite delicate and we recomend that you use additional containment boxes. The WFOTB-W4 or larger are suggested with WFCO-SCAPC-OS2-SF couplers.
The Whyte range of mini optical taps operate over a wide range of optical wavelengths from 1260 to 1650nm featuring low insertion loss, high uniformity across output ports, high return loss and excellent directivity performance. These taps are terminated with SC/APC male connectors. Cost effective and highly reliable, Whyte optical mini taps are ideal for indoor fibre distribution applications with quick and easy toolless fitting in a range of Whyte Fibre Distribution Boxes. Whyte mini taps feature the following convenient ratios: 90:10 / 80:20 / 70:30 and 60:40
