WHYTE 5 Lite Multiswitch 5x8 c/w PSU

5 In 8 Out (Earth Bars Not Included)
Quad/Quattro - 4 Year Warranty

SKU: WM508L

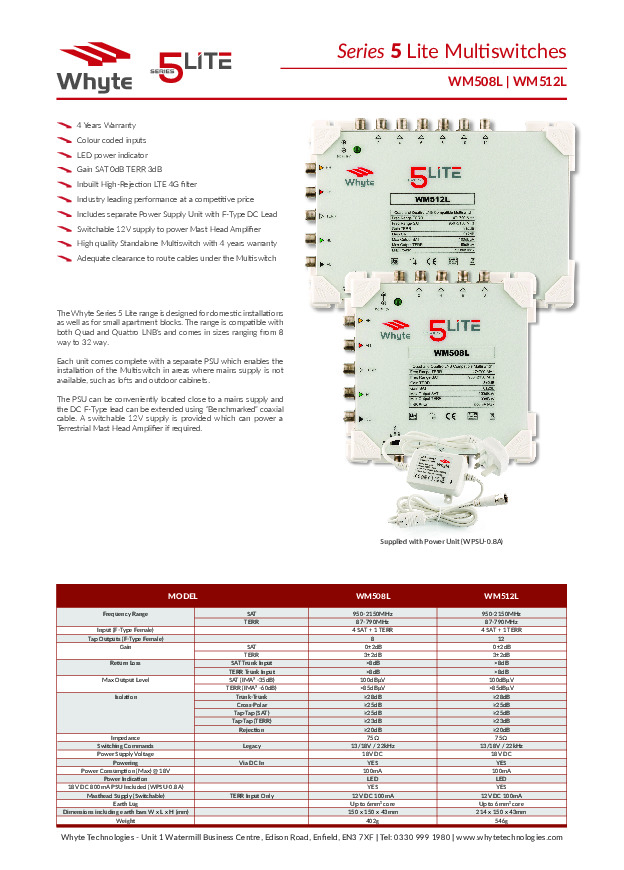

  Product Documents

WHYTE 5 Lite Multiswitch 5x8 c/w PSU

5 In 8 Out (Earth Bars Not Included)
Quad/Quattro - 4 Year Warranty


The Whyte Series 5 Lite 8-Way Standalone Multiswitch is designed for domestic installations as well as for small apartment blocks and, is compatible with both QUAD and QUATTRO LNBs.

Main Features:

  • LED Power Indicator
  • Colour Coded Inputs
  • Gain SAT: 0dB / TERR: 3dB
  • Inbuilt High-Rejection LTE 4G Filter
  • Industry Leading Performance at a competitive price
  • Switchable 12V supply to power Mast Head Amplifier
  • Adequate Clearance to route cables under Multiswitch
  • Includes Separate Power Supply Unit with F-Type DC Lead
  • High quality Standalone Multiswitch with 4 years warranty
  • Comes Complete with 0.8A 18V DC Power Supply WPSU-0.8A

Specifications:

Frequency Range:SAT 950-2150MHz | TERR 87-790MHz
4G Filter:YES
Input (F-Type Female):4 SAT + 1 TERR
Tap Outputs (F-Type Female):8
Gain:SAT 0±2dB | TERR 3±2dB
Return Loss Trunk Input:SAT >8dB | TERR >8dB
Max Output Level:SAT (IMA³ -35dB) 100dBμV
TERR (IMA³ -60dB) >85dBμV
Isolation:Trunk - Trunk >28dB
Cross Polar: ≥25dB
Tap-Tap SAT >25dB
Tap-Tap TERR >23dB
Rejection ≥20dB
Impedance:75 Ohms
Switching Commands:Legacy 13/18V / 22kHz Tone
Power Supply Voltage:18V DC
Powering:Via DC Input Only
Power Consumption (Max)@18V:100mA
Masthead Power Supply (Switchable):TERR Input Only 12V DC 100mA
18V DC 800mA PSU (WP-0.8A):Included
Earth Lug:Up to 6mm² Core
Dimensions (mm):150 x 150 x 43
Weight:402g
