The UniFi 8 Port Switch is the base model in the UniFi switch range.
It has 8 Gigabit Ethernet ports one of which is a PoE Passthrough port. The output voltage and power rely directly on the power input. Like all products in the UniFi range these switches are fully manageable via the UniFi Controller and deliver robust performance and intelligent switching for your expanding networks.
Switching Performance: The US-8 offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Each port supports up to 8 Gbps total, non-blocking, throughput with a total switching capacity of 16Gbps.

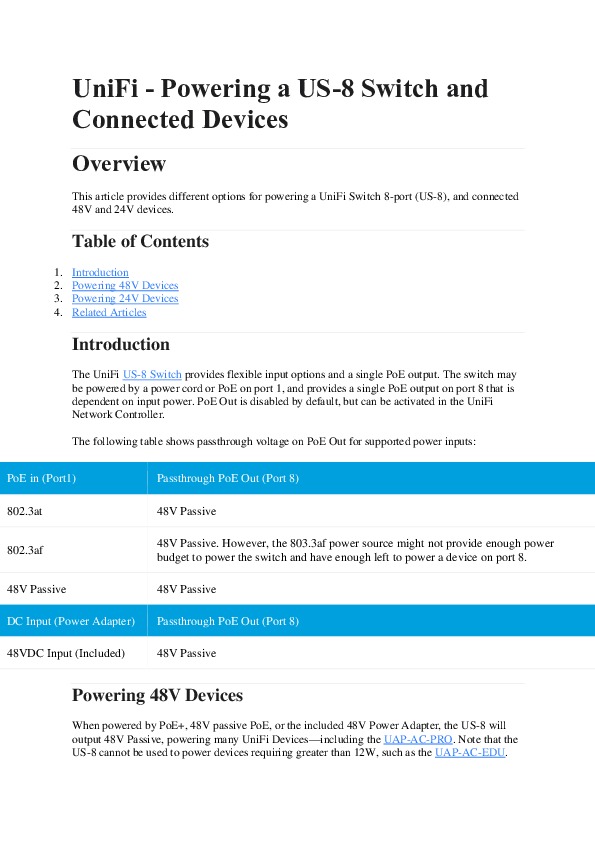

**WARNING... before any attempt to connect and use the passthrough port on this device please read (PDF2) in the Product Documents section (to the left) as this could lead to irreversible damage to any access points connected**
Hardware Specifications:
Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
Weight: 432 g (15.24 oz)
Enclosure Characteristics: SGCC Steel
Total Non-Blocking Throughput: 8 Gbps
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
Max. Power Consumption: 12W (Excluding PoE Output)
Max. PoE Wattage per Port: 12W
Power Method: 48V or 24V DC, Max. 2A
Supported Voltage Range: 48V Mode: 56V to 40V, 24V Mode: 27V to 20V.
Power Supply: External AC/DC Adapter, 48V, 0.5A
LEDs: PoE (Port 8), Speed/Link/Activity (All Ports)
Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
PoE In Interface (Port 1): PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
PoE Mode 2: Passive 24V or 48V (2-Pair Pins +4, 5; -7, 8)
PoE Mode 3: Passive 24V (4-Pair Pins +1, 2; -3, 6 and +4, 5; -7, 8)
PoE Out Interface (Port 8): PoE Mode 1: 48V (Pins +1, 2; -3, 6)
PoE Mode 2: Passive 24V or 48V (2-Pair Pins +4, 5; -7, 8)
PoE Mode 3: Passive 24V (4-Pair Pins +1, 2; -3, 6 and +4, 5; -7, 8)
DC Input Mode: DC Passthrough (Pins +1, 2; -3, 6)
Operating Temperature: -5 to 45 C (23 to 113F)
