UBIQUITI airMAX AC NanoBeam GEN2

5GHz 19dBi 450Mbps
(Use UBNT UMobile App for easy deployment)

SKU: NBE-5AC-GEN2

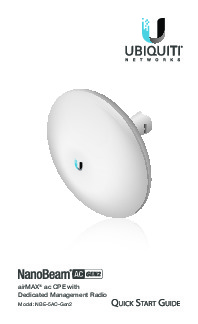

  Product Documents

UBIQUITI airMAX AC NanoBeam GEN2

5GHz 19dBi 450Mbps
(Use UBNT UMobile App for easy deployment)


Introducing the new Nanobeam 5AC GEN2 from Ubiquiti Networks. The NBE-5AC-GEN2 is the latest product in the Nanobeam range and features improved noise immunity for crowded RF environments as well as a 2.4GHz wireless management interface to make configuration even easier. The second generation Nanobeams come pre-installed with airOS 8 - the latest operating system for airMAX AC products. It features airMAX Mixed Mode, channel width customisation, and the strongest WPA2 security as well as a host of usability enhancements including; airMagic channel selection tool, a redesigned UI, HTML 5 technology, and much more.

Integrated Radio Design: Ubiquiti's InnerFeed technology integrates the radio into the feed horn of an antenna, so there is no need for cables to connect the radio to the antenna - improving performance by eliminating cable losses.

Specifications:

TX Power regulation: Yes
Conformity: FCC, IC, CE
Default IP: 192.168.1.20
Default name: ubnt
Default password: ubnt
DHCP: Yes
Dimension: 189 x 189 x 125 mm
Encryption: WPA2
Frequencies: 5.150 - 5.875 GHz
Channel Sizes: 10/20/30/40/50/60/80 MHz
Gain: 19 dBi
Chipset: Atheros MIPS74Kc, 720MHz
Interface: LAN, WiFI for management
IPv6 support: Transparent (Bridge mode)
LAN port: 1x RJ45 10/100/1000 Mbps
Max. output power: 26 dBm
Modulation: OFDM
Operation mode: AP, Client, WDS
Operational temperature: -40 - 70 C
OS: AirOS v8
Polarization: H/V
Power supply: 24 V, 0.5 A
Memory: 128 MB DDR2 8MB Flash
Sensitivity: -96 dBm
Transmission speed: 450 Mbps
Weight: 0.530 kg
