UBIQUITI airMAX 5AC NanoStation

Access point PtMP airMAX mixed mode
technology and dedicated Wi-Fi management

SKU: NS-5AC

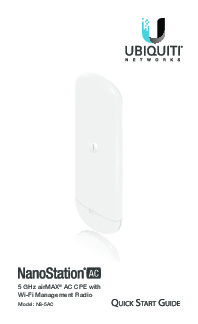

  Product Documents

UBIQUITI airMAX 5AC NanoStation

Access point PtMP airMAX mixed mode
technology and dedicated Wi-Fi management


The Ubiquiti NanoStation 5AC, or NS-5AC takes the same concept as it's popular predecessor and brings it into the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management. The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC gets maximum gain out of the smallest footprint. The low cost, high performance, small form factor and PoE pass-through of the NanoStation AC makes it extremely versatile and economical to deploy. Ideal for CCTV back-haul.

Versatile Mounting- Suitable for indoor and outdoor installations

Improved Surge Protection- The NanoStation AC utilises the latest ESD Protection to help protect against power surges.

Efficient Footprint- The radio and antenna are combined into a single body that takes up minimal space.

Quick Installation- No fasteners are required for pole-mounting.

Dual Ethernet Connectivity- The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

Management Wi-Fi Radio- Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Now with airOS 8- airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Powerful Wireless Features:

  • Access Point PtMP airMAX Mixed Mode.-
  • airMAX ac Protocol Support
  • Long-Range Point-to-Point (PtP) Link Mode
  • Selectable Channel Width;
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
  • Automatic Channel Selection
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)
  • Strongest WPA2 Security

Specifications:

  • Dimensions: 257 x 84 x 41 mm
  • Weight: 233 g
  • Power Supply: 24V, 0.5A Gigabit PoE Supply (Included)
  • Max. Power Consumption: 8.5W
  • Power Method: 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
  • 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Gain: 16 dBi
  • Networking Interface: (2) 10/100/1000 Mbps Ethernet Ports
  • Channel Bandwidths: 10/20/30/40/50/60/80 MHz
  • Processor Specs: Atheros MIPS 74Kc, 560 MHz
  • Memory: 64 MB DDR2
  • Cross-pol Isolation: 20 dB Minimum
  • Max. VSWR: 1.6:1
  • Beamwidth: 45 (H-pol) / 45 (V-pol) / 45 (Elevation)
  • Polarisation: Dual Linear
  • Enclosure: UV Resistant Polycarbonate
  • LEDs: (1) Power, Eth1, Eth2
  • (1) Signal Strength
  • Mounting: Pole-Mount (Kit Included)
  • Operating Temperature: -40 to 70 C
  • Operating Humidity: 5 to 95% Noncondensing
  • RoHS Compliance: Yes
  • ESD/EMP Protection: +-24kV Contact/Air
  • Shock & Vibration: ETSI300-019-1.4
  • Certifications: CE, FCC, IC
