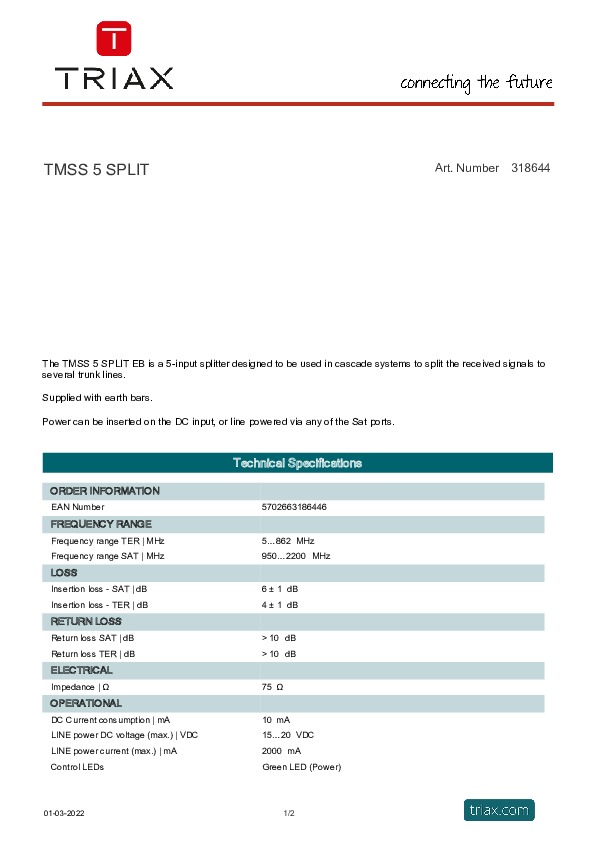

The TMSS 5 SPLIT EB is a 5-input splitter designed to be used in cascade systems to split the received signals to several trunk lines.Supplied with earth bars.Power can be inserted on the DC input, or line powered via any of the Sat ports
Main features:
Connectors:
Number of inputs: 4 SAT, 1 TER
Number of outputs: 2 x 5 (8 SAT, 2 TER)
Colourcoding @IF/TER inputs: VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER
Connector Type: F-female
Connector DC: F-female
Frequency range:
Frequency range TER: 5…862 MHz
Frequency range SAT: 950…2200 MHz
Loss:
Insertion loss - SAT: 6 ± 1 dB
Insertion loss - TER: 4 ± 1 dB
Electrical:
Impedance: 75 Ω
Return loss:
Return loss SAT: > 10 dB
Return loss TER: > 10 dB
Operational:
DC Current consumption: 10 mA
LINE power DC voltage (max.): 15…20 VDC
LINE power current (max.): 2000 mA
Control LEDs: Green LED (Power)
Temperature - operating-20…+55 °C
