TRIAX TMSA 5 Line Amplifier EB

5 In 5 Out 20dB c/w ALL Earth Bars
(May require PSU: 318167) 6 Year Warranty

SKU: 318645

  Product Documents

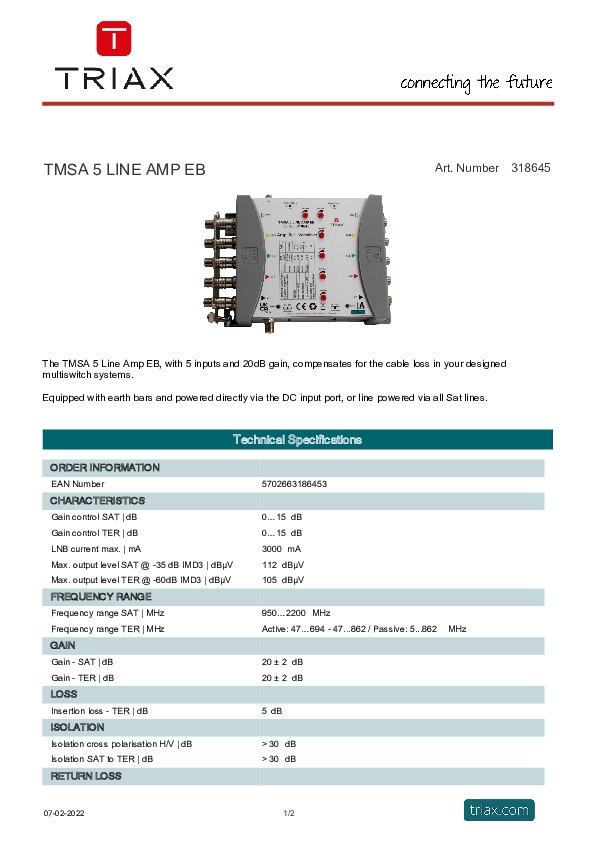

TRIAX TMSA 5 Line Amplifier EB

5 In 5 Out 20dB c/w ALL Earth Bars
(May require PSU: 318167) 6 Year Warranty


The TMSA 5 Line Amp EB, with 5 inputs and 20dB gain, compensates for the cable loss in your designed multiswitch systems.

Equipped with earth bars and powered directly via the DC input port, or line powered via all Sat lines.

Main features:
Electrical:
Impedance: 75 Ω

Connectors:
Connector Type: F-female
Number of trunk inputs: 5
Number of trunk outputs: 5
ColoUrcoding @IF/TER inputs: VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

Characteristics:
Input polarity gain control TER: 0…15 dB
Input polarity gain control SAT: 0…15 dB
Max. output level SAT @ -35 dB IMD3: 112 dBµV
Max. output :3000 mA

Frequency range:
Frequency range TER: Active: 47…694 - 47...862 / Passive: 5...862 MHz
Frequency range SAT: 950…2200 MHz

Gain:
Gain - SAT: 20 ± 2 dB
Gain - TER: 20 ± 2 dB

Loss:
Insertion loss - TER: 5 dB

Isolation:
Isolation SAT to TER: > 30 dB
Isolation cross polarisation H/V: > 30 dB

Return loss:
Return loss SAT: > 10 dB

Operational:
LINE power DC voltage (max.): 15…20 VDC
LINE power current (max.): 2000 mA
PSU output DC voltage: 18 VDC
ESD protection: 4KV inputs & sub outputs
DC Current consumption: 230mA max. @18V DC mA
PSU/adapter Art number: 318165, 318166, 318167
Control LEDs: Green LED (Power)
Temperature - operating: -20…+50 °C
