TRIAX TLP 048 5G LTE700 LP Barrel Filter

Ch21-48 F Male - F Female

SKU: 314176

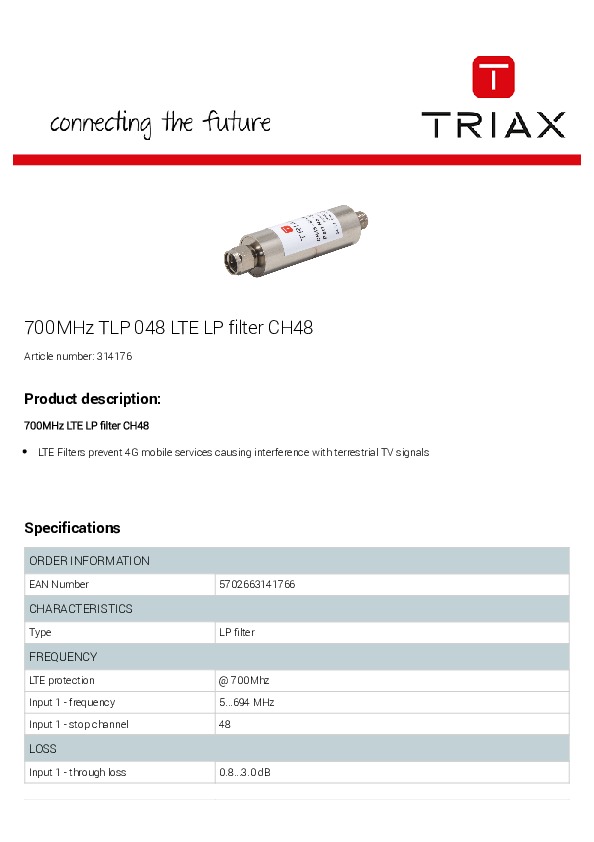

  Product Documents

TRIAX TLP 048 5G LTE700 LP Barrel Filter

Ch21-48 F Male - F Female


700MHz LTE LP filter CH48

MAIN FEATURES:

  • LTE Filters prevent 4G mobile services causing interference with terrestrial TV signals

FREQUENCY
LTE protection: @ 700Mhz
Input 1 - frequency: 5...694 MHz
Input 1 - stop channel: 48

LOSS
Input 1 - through loss: 0.8...3.0 dB
Rejection @ 730 MHz (Ch. 53): > 50.0 dB

RETURN LOSS
Return loss (in-out) 40-1000 MHz: ≥ 18dB -1.5dB/Oct, min. 10dB dB
Return loss (in-out) 5-40 MHz: 20 dB

ELECTRICAL
Impedance: 75 Ω

OPERATIONAL
DC Passthrough: Yes (30VDC / 1A)

CONNECTORS
Number of outputs: 1
Connector Type: F-male / F-female
Number of inputs: 1

MECHANICAL
Product Depth: 25 mm
Product Width: 25 mm
Product Height: 85 mm
