TRIAX TFC F Triplexer FM/DAB/UHF+DC

Masthead 3 In 1 Out (MFC104)

SKU: 370683

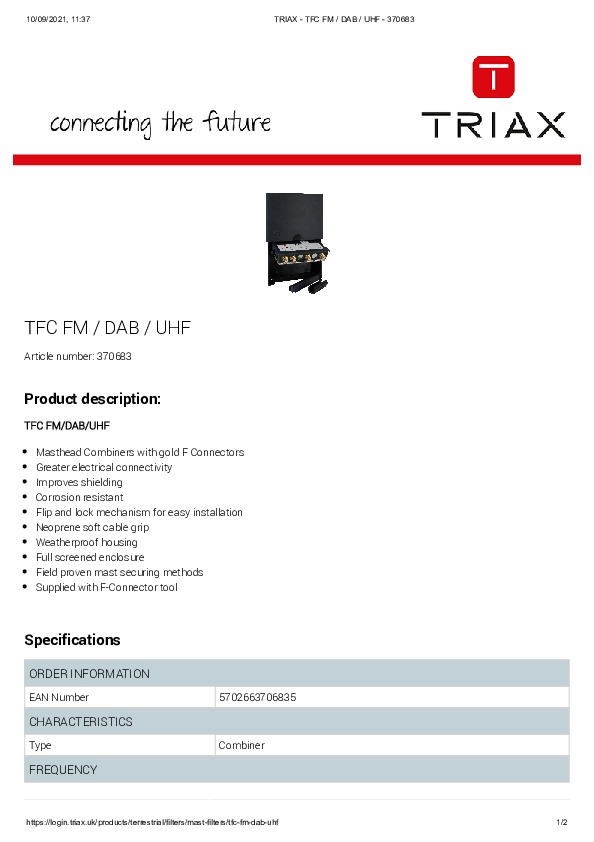

  Product Documents

TRIAX TFC F Triplexer FM/DAB/UHF+DC

Masthead 3 In 1 Out (MFC104)


Triax FM/DAB/UHF

Main features:

  • Masthead Combiners with gold F Connectors
  • Greater electrical connectivity
  • Improves shielding
  • Corrosion resistant
  • Flip and lock mechanism for easy installation
  • Neoprene soft cable grip
  • Weatherproof housing
  • Full screened enclosure
  • Field proven mast securing methods
  • Supplied with F-Connector tool

Characteristics
Type: Combiner

Frequency
Input 1 - frequency: 87.5-108 MHz
Input 2 - channels: 5-12
Input 2 - frequency: 174-230 MHz
Input 3 - channels: 21-68
Input 3 - frequency: 470-862 MHz
Band: FM / DAB / DAB+ / UHF

Loss
Input 1 - through loss: <1.0dB Typ dB
Input 2 - through loss: <1.5dB Typ dB
Input 3 - through loss: <2.0dB Typ dB

Operational
DC Passthrough: Yes (12VDC / 500mA)

Connectors
Number of inputs: 3
Number of outputs: 1

MECHANICAL
Height (mm): 140 mm
Depth (mm): 60 mm
Width (mm): 118 mm
Net Weight: 0,245 kg
Remarks: Screened Housing, Power Pass to UHF Input
