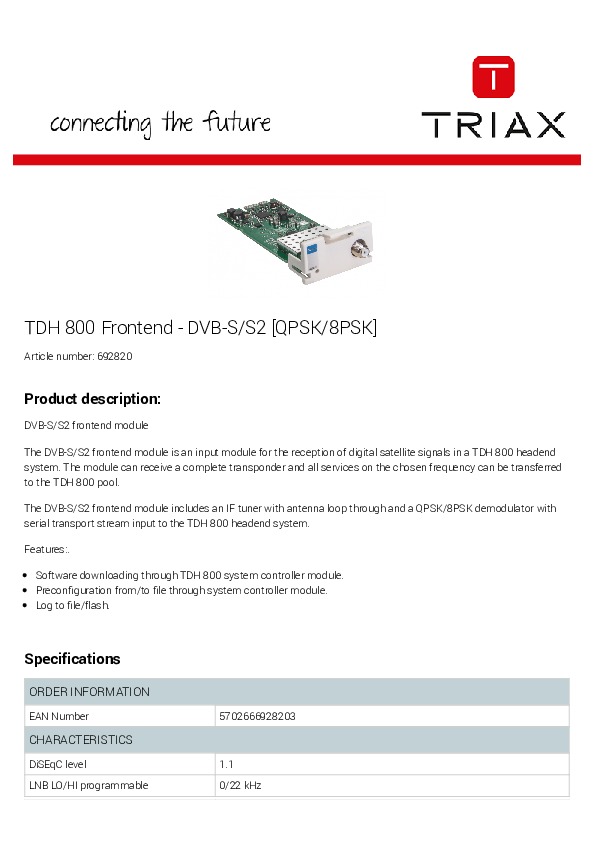

TDH 800 Frontend - DVB-S/S2 [QPSK/8PSK]
DVB-S/S2 frontend module
The DVB-S/S2 frontend module is an input module for the reception of digital satellite signals in a TDH 800 headend system. The module can receive a complete transponder and all services on the chosen frequency can be transferred to the TDH 800 pool.
The DVB-S/S2 frontend module includes an IF tuner with antenna loop through and a QPSK/8PSK demodulator with serial transport stream input to the TDH 800 headend system.
MAIN FEATURES::
- Software downloading through TDH 800 system controller module.
- Preconfiguration from/to file through system controller module.
- Log to file/flash.
CHARACTERISTICS
DiSEqC level: 1.1
LNB LO/HI programmable: 0/22 kHz
LNB V/H programmable: 0-13-18/300 V/mA
Input level: 50 ... 85 dBµV
FREQUENCY
Input frequency range: 950...2150 MHz
RETURN LOSS
Input return loss: > 10 dB
ELECTRICAL
Impedance: 75 Ω
OPERATIONAL
DC Operating voltage: 12 VDC
Temperature - operating: -10...50 °C
Temperature - storage: -20 ..70 °C
DC Current consumption: OFF 150/ ON 450 mA
Humidity - operating: 20...80 %
Humidity - storage: 10...90 %
CONNECTORS
Input connector F-female
Number of inputs 1
MECHANICAL
Dimensions product (H x D x W): 32 x 132 x 50 mm
