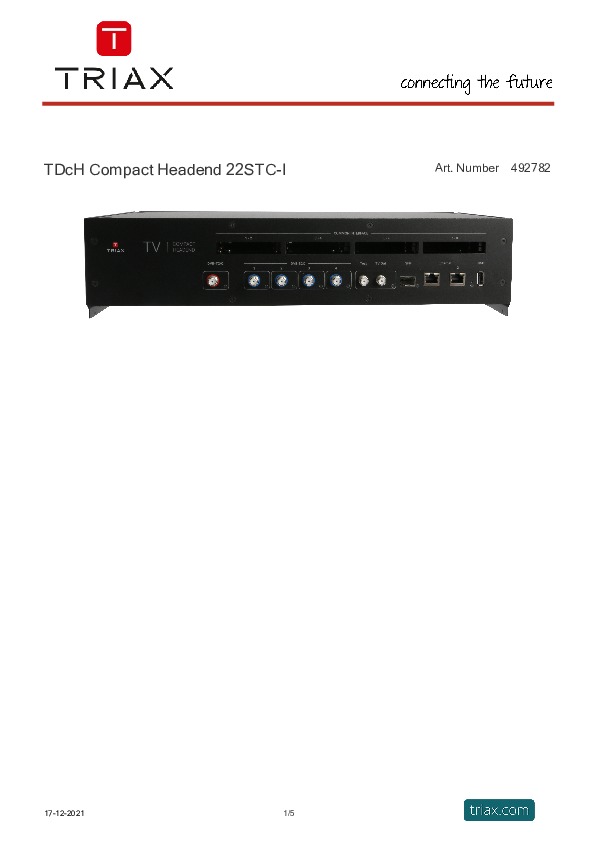

  Product Documents

TRIAX TDcH Compact Headend 22STC-I

2 Year Warranty
*Special Order! NCNR - Check Lead Time*


TDcH Compact Headend with CI Interfaces

DVB-S, DVB-S2, DVB-T, DVB-T2 and DVB-C conversion to QAM or COFDM (switchable) with the possibility to decrypt services centrally in the headend. Built for both wall mounting and 19” racks and equipped with 4 DVB-S/S2 inputs, 1 DVB-T/T2/C input, 16 DVB-S2X tuners, 6 DVB-T/T2/C tuners, 16 QAM or COFDM (switchable) modulators and 8 CI slots. The TDcH compact headend is optimised and engineered to meet specific TV distribution requirements in hospitality, multi-dwelling units

Main features:

  • Connector IN:F connector
  • Input Type: SAT-IF
  • Output connector: F connector
  • Connector - SFP cage: 1 x 1000 Base-T (SFP)
  • Connector SAT: 4 x F connector, 75 Ohm, 400 mA per input LNB power feed
  • Connector USB:USB 2.0, Type A con (Data transfer, additional storage, …)
  • External RF OUT: 1 x F connector 75 Ohm
  • Output connectors: 1 x F connector 75 Ohm
  • Output connectors (for RF): 1 x F connector, 75 Ohm
  • Connector SAT-IF: 4 x F connector, 75 Ohm, 400 mA per input LNB power feed
  • SFP cage: 1 x 1000 Base-T (SFP)
  • USB port: USB 2.0, Type A con

ELECTRICAL
Number of RF outputs:1

CHARACTERISTICS
Demodulator Type:DVB-S2X
Demodulator Symbolrate: 1...45 Msym/s
Input level: 44 – 90 dBμV dBµV
LNB current max: 400 mA
LNB V/H programmable: 13/18 V/mA
LNB LO/HI programmable: 22 kHz
DiSEqC level:1.0
FFT mode DVB-T: 2k, 8k
FFT mode DVB-T2: 1k, 2k, 4k, 8k, 16k, 32k
Constallations DVB-T: QPSK, 16QAM, 64QAM
Constallations DVB-T2: QPSK, 16QAM, 64QAM, 256QAM
Code rates DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
Code rates DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval DVB-T: 1/4, 1/8, 1/16, 1/32
Guard interval DVB-T2: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
Output Type: QAM/COFDM
Output QAM Modes: 16, 32, 64, 128, 256
Output level adjustment: 10 dB
Output Level System: QAM 95 / COFDM 93 dBµV
Output symbol rate: 3,5...7,2 Mbit/s
Spurious Signals: > 60dB dB
MER: QAM>43 / COFDM>40 dB
Cable - symbol rate: 3.5...7.2 Mbit/s
Demodulator Viterbi Decoder: 1/2; 2/3; 3/4; 5/6; 7/8; automatically / manually
DVB-S2 Modes (8PSK): 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
DVB-S2 Modes (QPSK): 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S Modes (QPSK): 1/2, 2/3, 3/4, 5/6, 7/8
LNB band selection: DiSEqC 1.0 Control 13/18VDC and 22kHz
Max. Output level (@ full dig. load): QAM 95 / COFDM 93 dBµV
Modulation scheme: QAM 16, 32, 64, 128, 256
Output channel: S 21 – C 69
Output level: QAM 85...95 / COFDM 83...93 dBµV
Satellite - demodulation: QPSK; 8PSK
Satellite transponders: 16
Symbol rate DVB-S (QPSK): 1...45 Mbit/s
Symbol rate DVB-S2 (8PSK): 4.5...45 Mbit/s
Symbol rate DVB-S2 (QPSK: 4.5...45 Mbit/s
Viterbi decoder: 1/2; 2/3; 3/4; 5/6; 7/8; automatically / manually
Test Point: -20 dB
Supported CAM Vendors: Aston / Neotion / SMARDTV / SMiT
Supported modules and cards: Conax: Canal Digital (Nordic) / Telewizja (PL) / T Home (HU)/ . Cryptoworks: ORF (AT), / UPC Direct (HU) Irdeto: ORF (AT) Nagravision: Canal Digital (NL), Canal+ (FR), Cyfra (PL), Cyfrowy (PL), Multicanal (ES), UPC, NDS, Viasat (Nordic + Baltic) Viaccess: Canal+ (FR), Eurosport (PL)
Transport stream: chip set prepared but not supported with SW1.0

FREQUENCY RANGE
Input frequency range: 950...2150 MHz
Output frequency range: 306...862 MHz
Channel Raster: 8 MHz
Channels: S 21 – C 69
Number of channels: 16 channels in a row, single channel can be switched off
Satellite - frequency range: 950...2150 MHz

RETURN LOSS
Output Return Loss: >10 dB
Return loss SAT inputs: > 10 dB
Return loss (RF OUT): > 10 dB

OPERATIONAL
CI slots: 8 x PCMCIA (front access)
Data rate: 83 Mbit/s
Ethernet Interface: 2 x 1000 Base-T (RJ 45)
DC Supply Voltage: 5 VDC

MECHANICAL
Clips/Grounding strap: Ground clamp
19" Rack mount: 2 HE,U
