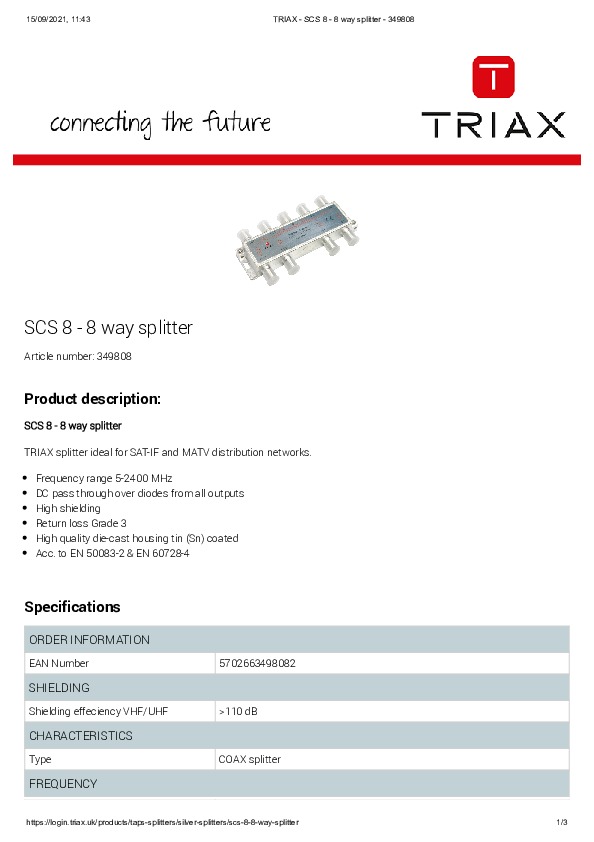

SCS 8 - 8 way splitter
TRIAX splitter ideal for SAT-IF and MATV distribution networks.
Main features:
- Frequency range 5-2400 MHz
- DC pass through over diodes from all outputs
- High shielding
- Return loss Grade 3
- High quality die-cast housing tin (Sn) coated
- Acc. to EN 50083-2 & EN 60728-4
Shielding
Shielding effeciency VHF/UHF: >110 dB
Characteristics
Type: COAX splitter
Frequency
Frequency range: 5...2400 MHz
Loss
Insertion loss (in-out) 2150-2400 Mhz: 17.0 dB
Insertion loss (in-out) 40-1000 Mhz: 13.0 dB
Insertion loss (in-out) 5-40 Mhz: 11.8 dB
Insertion loss (in-out) 1000-2150 MHz : 16.5 dB
Isolation
Isolation (tap-tap) 1000-2150 MHz: 23 dB
Isolation (tap-tap) 2150-2400 MHz: 23 dB
Isolation (tap-tap) 40-1000 MHz:: 23 dB
Isolation (tap-tap) 5-40 MHz : 25 dB
Return loss
Return loss (in-out) 1000-2150 MHz: 13.0 dB
Return loss (in-out) 2150-2400 MHz: 12.0 dB
Return loss (in-out) 40-1000 MHz: 11.0 dB
Return loss (in-out) 5-40 MHz: 8.5 dB
Electrical
Impedance: 75 Ω
Operational
DC Passthrough: Yes (max. 500mA)
Screening Efficiency: EN50083-2 (Class A)
Application: SAT, MATV 2.4Ghz +DC
Environment: Indoor
Connectors
Number of outputs: 8
Number of inputs: 1
Mechanical
Product Depth: 20 mm
Total Weight: 0,125 kg
Net Weight: 0,125 kg
Packing QTY: 1
Product Width: 119 mm
Product Height: 65 mm
Bracket (optional): 2x BL / Art No 342102
Formula Test: 65 mm x 119 mm x 20 mm
