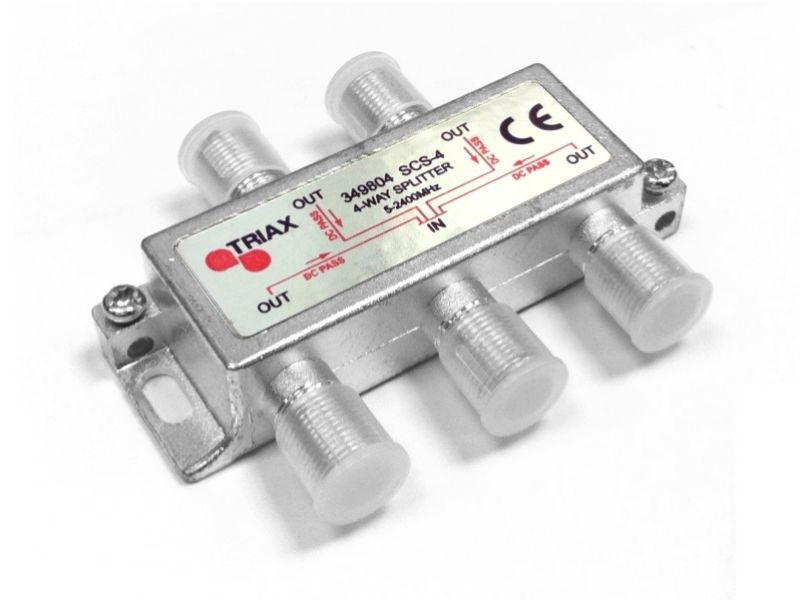

TRIAX SCS-4 4 Way F Splitter (5-2400MHz)

SCS 4 - 4 way splitter
Main features:

• RF shielded zinc die-cast housing with nickel plating
• All ports F type 75 ohm
• All output ports DC pass
• Fixing screws supplied
• Low insertion loss
• High isolation for UHF/IF distribution
• Earth terminal built into housing

Screening
40-470 MHz > 75dB
470-1000 MHz > 65dB
1000-2400 MHz > 55dB
Insertion Loss (dB)
5-40 MHz: 8
470-860 MHz: 8
1000-2050 MHz: 11
2050-2400 MHz: 11.5
Mutual Isolation (dB)
5-40 MHz: 23
470-860 MHz: 24
1000-2050 MHz: 22
2050-2400 MHz: 22
Return Loss (dB)
5-40 MHz: 10
470-860 MHz: 12
1000-2050 MHz: 12
2050-2400 MHz: 12
