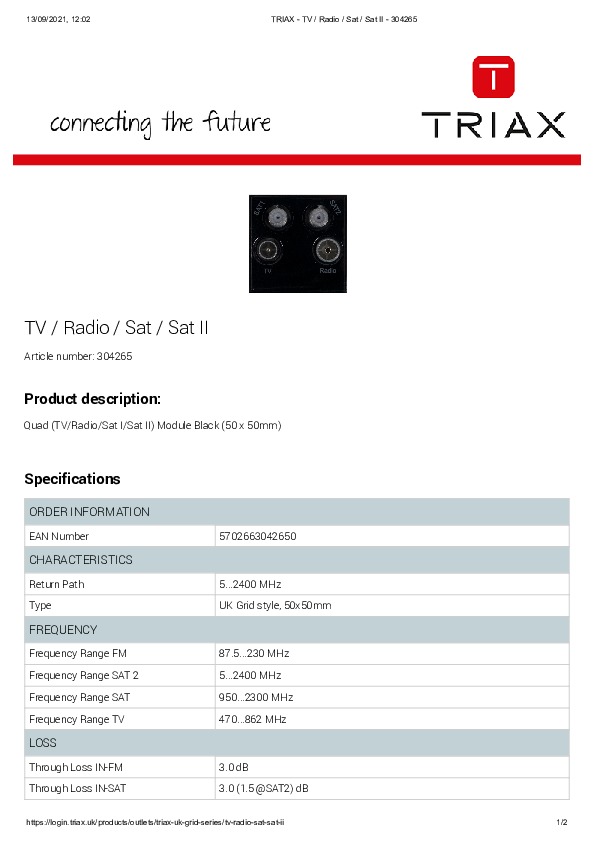

Quad (TV/Radio/Sat I/Sat II) Module Black (50 x 50mm)
Characteristics
Return Path: 5...2400 MHz
Type: UK Grid style, 50x50mm
Frequency
Frequency Range FM: 87.5...230 MHz
Frequency Range SAT 2: 5...2400 MHz
Frequency Range SAT: 950...2300 MHz
Frequency Range TV: 470...862 MHz
Loss
Through Loss IN-FM: 3.0 dB
Through Loss IN-SAT: 3.0 (1.5 @SAT2) dB
Through Loss IN-TV: 2.5 dB
Operational
DC Passthrough SAT: Yes
Connectors
Connector FM: IEC-female
Connector TV: IEC-male
Mechanical
Total Weight; 0,114 kg
Net Weight; 0,095 kg
Remarks: Screened Two Terminal and Clamp cable entries Fits 15mm Patress Return normally used as SAT 2 DC througpower On SAT Return
Product Width: 50 mm
Product Height: 50 mm
Colour: Black
Main material: Polycarbonate
