TRIAX Quad Screened Outlet Plate

UHF-FM/DAB-IF-IF2/RETURN
2 In 4 Out (IF & Return Non-Isolated)
(Fits standard depth pattress boxes)

SKU: 304109

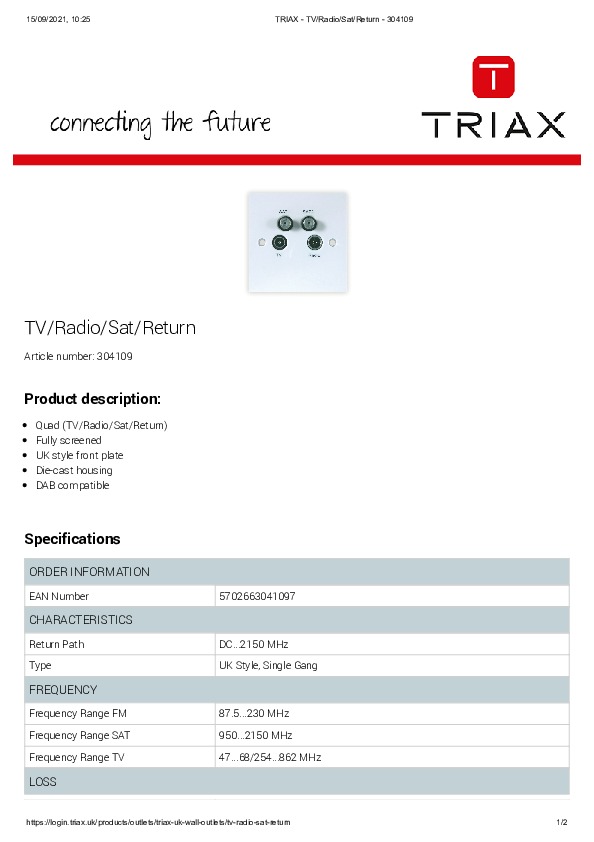

  Product Documents

TRIAX Quad Screened Outlet Plate

UHF-FM/DAB-IF-IF2/RETURN
2 In 4 Out (IF & Return Non-Isolated)
(Fits standard depth pattress boxes)


TV/Radio/Sat/Return

Main features:

  • Quad (TV/Radio/Sat/Return)
  • Fully Screened
  • UK style front plate
  • Die-cast housing
  • DAB compatible

Characteristics
Return Path: DC...2150 MHz
Type: UK Style, Single Gang

Frequency
Frequency Range FM: 87.5...230 MHz
Frequency Range SAT: 950...2150 MHz
Frequency Range TV: 47...68/254...862 MHz

Loss
Through Loss IN-FM: 3.0 dB
Through Loss IN-SAT: <3.0 dB
Through Loss IN-TV: <2.5 dB

Return loss
Return Loss IN: <1.0 dB

Operational
DC Passthrough SAT: Yes

Connectors
Connector FM: IEC-female
Connector IN-OUT: Spring Clamp Termination
Connector TV: IEC-male

Mechanical
Product Depth: 37 mm
Total Weight: 0,165 kg
Net Weight: 0,127 kg
Remarks: Screened Die-Cast Housing Return port can also be used as SAT 2 port
Product Width: 86 mm
Product Height: 86 mm
Colour: White
