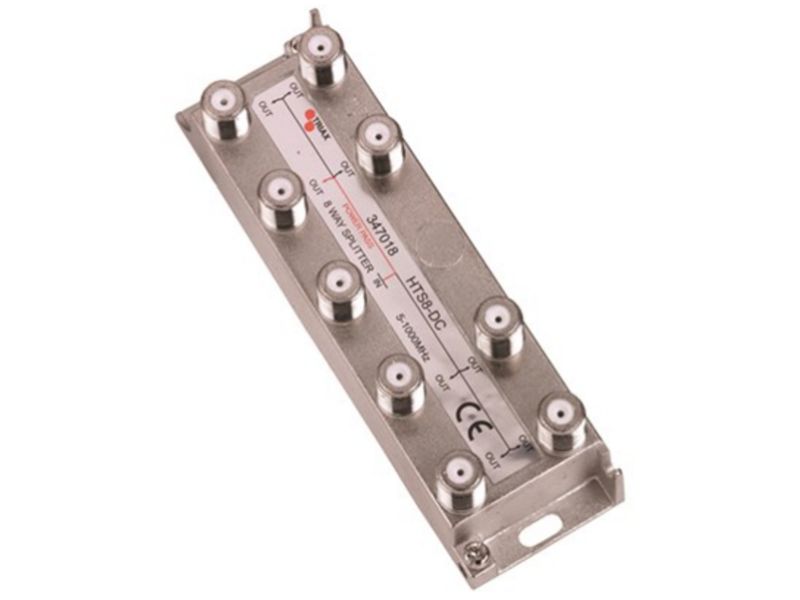

TRIAX 8 Way F Splitter (5-1000MHz)

HTS 8DC - 8 way splitter. Low insertion loss. All ports impedance 75 Ohm. High isolation. Class A shielding - ideal for your TV system.

SHIELDING
Shielding effeciency VHF/UHF: > 110.0 dB

FREQUENCY
Frequency range: 5...1000 MHz

LOSS
Insertion loss (in-out) 5-40 Mhz: < 10.2 dB
Insertion loss (in-out) 40-470 MHz: < 10.6 dB
Insertion loss (in-out) 470-860 MHz: < 11.5 dB
Insertion loss (in-out) 860-1000 MHz: < 12.0 dB

ISOLATION
Isolation (tap-tap) 5-40 MHz: > 26.0 dB
Isolation (tap-tap) 40-470 MHz: > 28.0 dB
Isolation (tap-tap) 470-860 MHz: > 24.0 dB
Isolation (tap-tap) 860-1000 MHz: > 24.0 dB

RETURN LOSS
Return loss (in-out) 5-40 MHz: > 20.0 / > 20.0 dB
Return loss (in-out) 40-470 MHz: > 20.0 / > 20.0 dB
Return loss (in-out) 470-860 MHz: > 20.0 / > 20.0 dB
Return loss (in-out) 860-1000 MHz: > 20.0 / > 20.0 dB

ELECTRICAL
Impedance: 75 Ω

OPERATIONAL
DC Passthrough: Yes

CONNECTORS
Number of outputs: 8

MECHANICAL
Product Height: 60 mm
Product Width: 117 mm
Product Depth: 16 mm
