TRIAX 16 Way F Splitter (5-1000MHz)

Front Input Connection Style
All Ports AC/DC Blocked at Inner Conductor
*Special Order! NCNR - Check Lead Time*

SKU: 343256

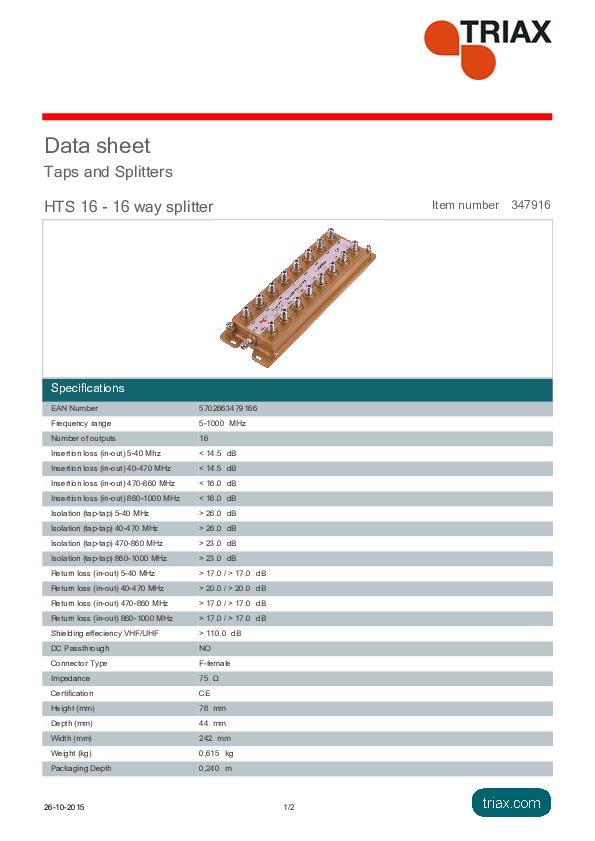

  Product Documents

TRIAX 16 Way F Splitter (5-1000MHz)

Front Input Connection Style
All Ports AC/DC Blocked at Inner Conductor
*Special Order! NCNR - Check Lead Time*


16 way splitter. Low insertion loss. All ports impedance 75 Ohm. High isolation. Class A shielding - ideal for your TV system.

Number of outputs: 16 Connector Type F-female

Frequency range: 5-1000 MHz

Height (mm): 78 mm
Depth (mm): 44 mm
Width (mm): 242 mm
Weight (kg): 0.615 kg

Certification: CE

Shielding efficiency VHF/UHF: > 110.0 dB

Return loss (in-out) 5-40 MHz : > 17.0 / > 17.0 dB
Return loss (in-out) 40-470 MHz: > 20.0 / > 20.0 dB
Return loss (in-out) 470-860 MHz: > 17.0 / > 17.0 dB
Return loss (in-out) 860-1000 MHz: > 17.0 / > 17.0 dB

Insertion loss (in-out) 5-40 Mhz: < 14.5 dB
Insertion loss (in-out) 40-470 MHz: < 14.5 dB
Insertion loss (in-out) 470-860 MHz: < 16.0 dB
Insertion loss (in-out) 860-1000 MHz: < 16.0 dB

Isolation (tap-tap) 5-40 MHz: > 26.0 dB
Isolation (tap-tap) 40-470 MHz: > 26.0 dB
Isolation (tap-tap) 470-860 MHz: > 23.0 dB
Isolation (tap-tap) 860-1000 MHz: > 23.0 dB
