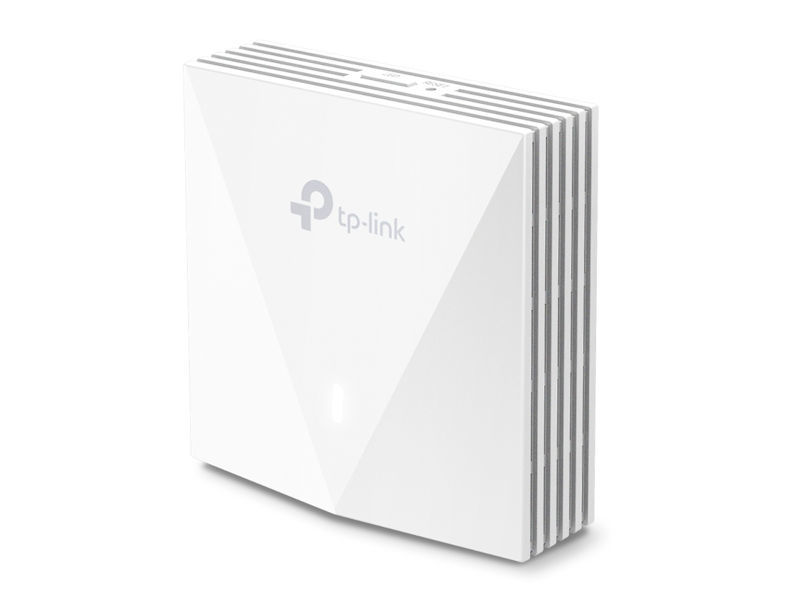

TP-LINK Omada AX3000 Wall Plate WiFi6 AP

AX3000 Wall Plate WiFi 6 Access Point

• Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.^†
• Higher Network Efficiency: Deliver data to more devices at the same time with less lag.^‡
• Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
• Gigabit Port: Connect wired devices with one downlink gigabit port.
• Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.
• Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.^§
• Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.

HARDWARE FEATURES

Interface - • Uplink: 1× 10/100/1000 Mbps Ethernet Port• Downlink: 1× 10/100/1000 Mbps Ethernet Port

Button - Reset, LED

Power Supply - 802.3af/at PoE

Power Consumption - 86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in)

Antenna - 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi

Mounting - Wall Plate Mounting (Kits included)

WIRELESS FEATURES

Maximum Number of Wireless Clients - 100+

Concurrent Clients - 100+

Wireless Standards - IEEE 802.11ax/ac/n/g/b/a

Frequency - 2.4 GHz and 5 GHz

Signal Rate -  2.4 GHz: Up to 574 Mbps • 5 GHz: Up to 2402 Mbps

Wireless Functions -

• 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming^§
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP

Wireless Security -

• Captive Portal Authentication^§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

Omada App - Yes

Centralized Management -

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access - Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts - Yes

LED ON/OFF Control - Yes
