8-output YEDFA optical amplifier with WDM and double power supply
1550 nm, Po 20dBm

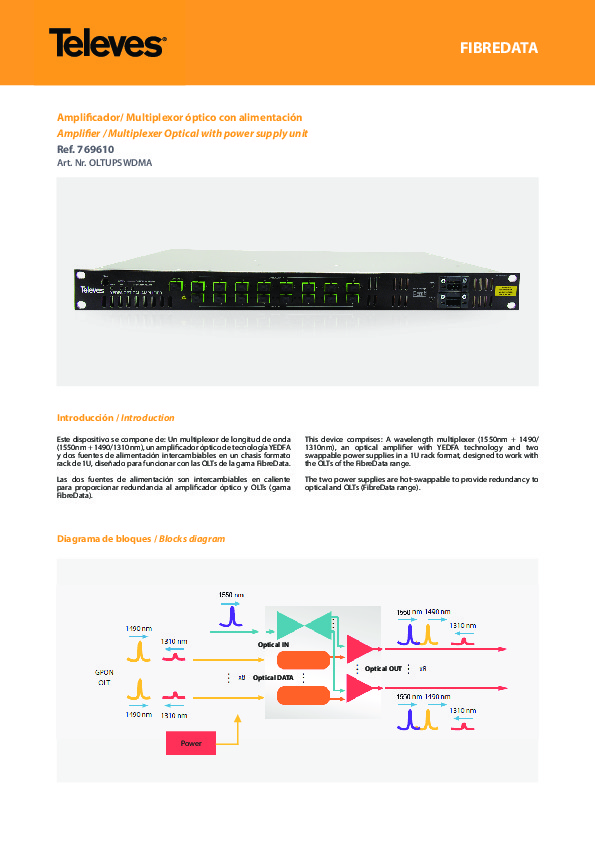

This device consists of an amplifier, a WDM, and a double power supply. Designed to mix the RF Overlay service with GPON and simultaneously power the OLT.
The optical amplifier amplifies a 1550 nm optical signal, with an output power of 20 dBm. Based on YEDFA (Erbium and ytterbium doped fiber) technology, it provides a high gain, a higher optical power, and a low noise factor.
Equipped with WDM, it provides eight 1310 nm/1490 nm-inputs that multiplex the amplified 1550 nm-signal, providing eight 1310 nm /1490 nm /1550 nm-outputs to be used in a GPON headend (usually OLT512).
Finally, the hot-swappable double power supply feeds an OLT.
HIGHLIGHTS
- 20 dBm high-optical output power amplifier
- Equipped with WDM for the multiplexing of RF Overlay with GPON signals
- -10 dBm to +10 dBm input range
- Status LED indicators
- High-efficiency power supply
- Hot swappable double power supply: subscriber service is not interrupted
- -48 VDC per module
MAIN FEATURES
- Application to include RF Overlay in GPON headends
- Suitable for long distances
- SC/APC connectors
OPTICAL INPUT Video Overlay
Input optical power (dBm): -10...+10
Input connector (tipo): 1SC/APC
Wavelength (nm): 1548...1565
OPTICAL INPUT GPON
Insertion loss (1310nm & 1490nm) (dB): <1
Input connector (tipo): 8 x SC/APC
GPON wavelength (nm): 1310±20 - 1490±20
OPTICAL OUTPUT
Output optical power (1550nm) (dBm): 20 ± 0,5
Output connector (tipo): 8 x SC/APC
Noise figure (dB): Tip 5 (Pin=0dBm 1550nm). Máx 7.
Return loss (dB): ≥ 40
POWER SUPPLY UNIT
AC voltage (VAC): 99-253
Frequency (Hz): 50-60
Efficiency (%): 89
Protection Index (IP): 20
