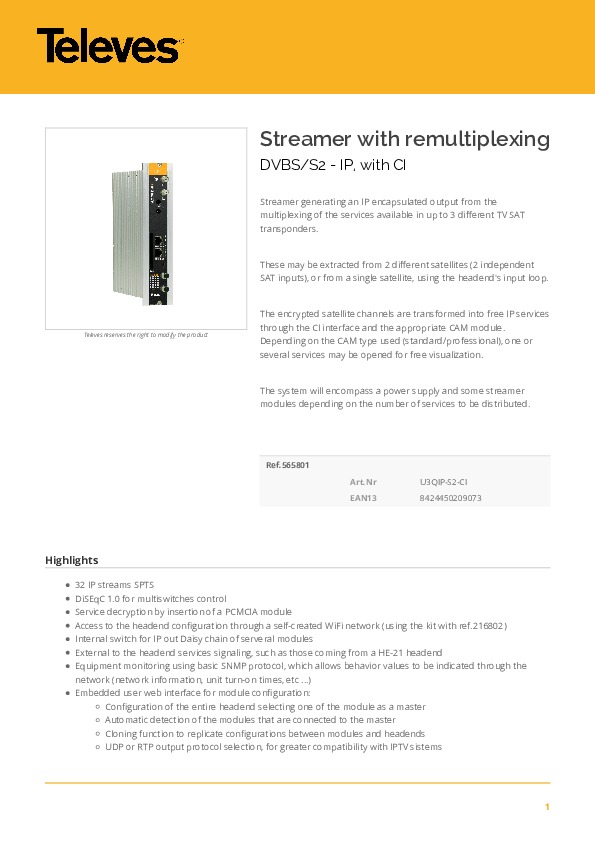

Streamer generating an IP encapsulated output from the multiplexing of the services available in up to 3 different TV SAT transponders.
These may be extracted from 2 different satellites (2 independent SAT inputs), or from a single satellite, using the headend's input loop.
The encrypted satellite channels are transformed into free IP services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free visualization.
The system will encompass a power supply and some streamer modules depending on the number of services to be distributed.
Highlights:
- 32 IP streams SPTS
- DiSEqC 1.0 for multiswitches control
- Service decryption by insertion of a PCMCIA module
- Access to the headend configuration through a self-created WiFi network (using the kit with ref.216802)
- Internal switch for IP out Daisy chain of serveral modules
- External to the headend services signaling, such as those coming from a HE-21 headend
- Equipment monitoring using basic SNMP protocol, which allows behavior values to be indicated through the network (network information, unit turn-on times, etc ...)
- Embedded user web interface for module configuration:
- Configuration of the entire headend selecting one of the module as a master
- Automatic detection of the modules that are connected to the master
- Cloning function to replicate configurations between modules and headends
- UDP or RTP output protocol selection, for greater compatibility with IPTV sistems
- Headend control indicators: module temperature, CAM status
Features:
- Selection of services among the 3 input transponders to distribute in streaming
- Includes EPG information (Electronic Program Guide) in the headend output stream
- Provides flow information of each service to estimate the global output flow of the module
- Device monitoring and signal status LEDs
