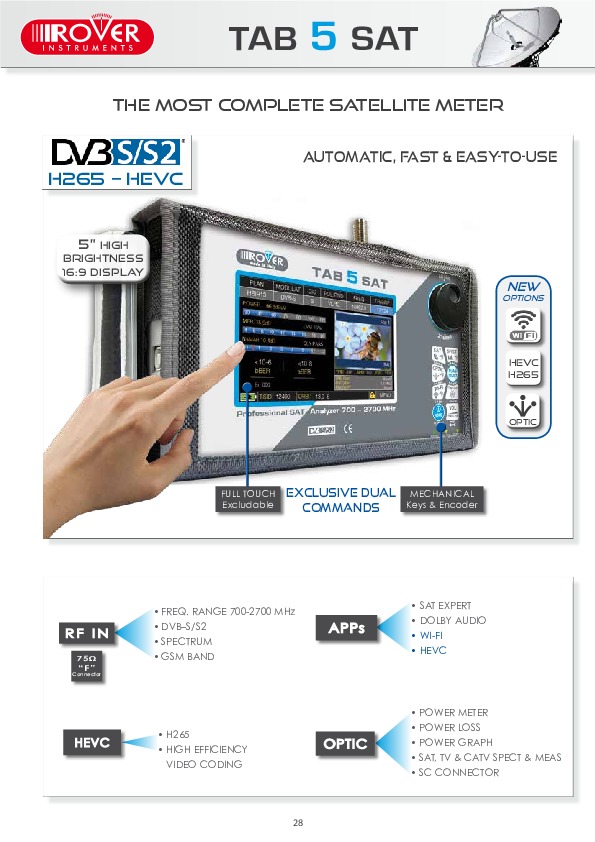

The MOST COMPLETE SATELLITE METER
AUTOMATIC, FAST & EASY to USE
Main features:
- 5” TFT TOUCH display: 16:9 high resolution and high brightness
- Power supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & battery test function
- DC voltage at RF input: 12 - 18 VDC, DiSEqC - SCR & dCSS commands
- PC interface: USB-B
- Front-panel: Alpha numeric keypad
- Power save: TFT backlight timer, brightness adj
- PC management: SMART software
Special functions
Automatically identifies all the signals with digital modulation DVB-S & DVB-S2
Automatic assistant: Signal quality analysis
Buzzer & noise margin real time graph for digital signals microinterruptions
Optical input (opt.)
2.4 & 5 GHz Wi-Fi analyzer (opt.)
HEVC H265 decoder (opt.)
SATELITE: DiSEqC-SCR & dCSS commands, SAT finder & SAT expert functions
Custom channel plans: 25 (199 ch. per plan), programmable SAT by PC or local keyboard
Loggers: With stop & go function
SAT memory plan: More than 2.000 transponders prememorized for world wide Satellite
Free SMART PC interface program and FW upgrades
Specifcations:measurements, spectrum analysis & pictures
Frequency range: 700–2700 MHz
Frequency resolution: 5 MHz
Power range meas.: 5 to 105 dBμV
Digital meas: Digital power, MER (20 dB max depending on modulation), BER, PER, LDPC, BCH, noise margin
Measurement resolution: 0.1 dB
Level measurement accuracy: 1 dB typ. (2 dB max.)
Resolution filter bandwidth: 5 MHz @ -3 dB
Constellation:
Spectrum: Fast spectrum, max hold and spectrum memorization with real time compare function
Net-id on board: Net-id, NID, TSID, SAT orbit position
Quality: Digital auto quality Test: PASS-MARGINAL & FAIL
Digital pictures: MPEG2-4 SD & HD, HEVC (opt.) pictures with program list, audio video PIDs, video bit rate all on one screen.
Optical measurements
SC input connector
Automatic loss calculation
Wavelengths (nm): 1310, 1490, 1550
Range: -25 to +6 dBm
Resolution: 0.1 dB
Accuracy: +/- 0.5 dB
Optical to RF conversion.
Comm, Ports and outputs
RF input : 75 ohm (interchangeable “F”);
USB 2.0: Type B (PC Interface);
Audio: AAC supplied, DOLBY (opt.);
Video: Composite video input.
Weight: only 1,4 Kg with batteries;
Size: H 13,0 x W 25,5 x D 4 cm;
Housing: Aluminium and steel, bag.
