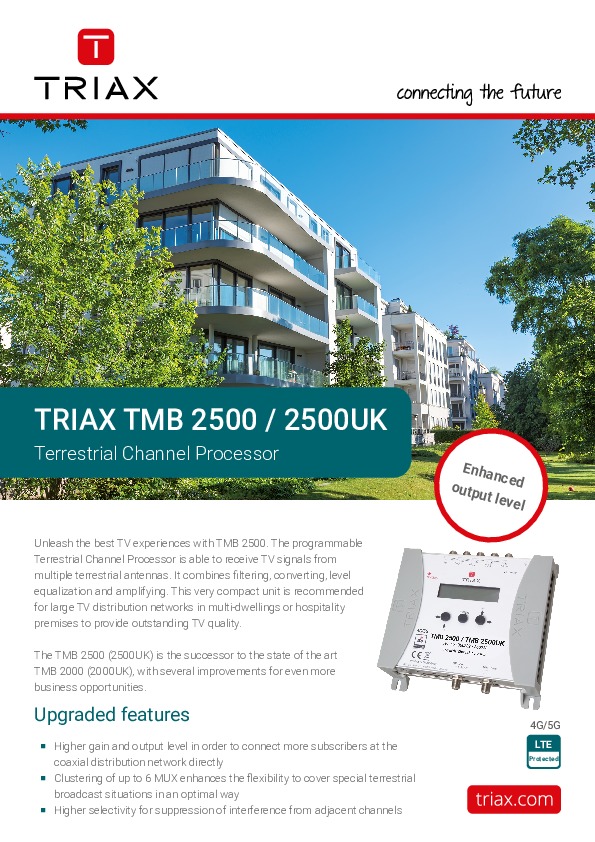

TRIAX TMB2500 Multiband Launch Amp

Unleash the best TV experiences with TMB 2500. The programmable Terrestrial Channel Processor is able to receive TV signals from multiple terrestrial antennas. It combines filtering, converting, level
equalisation and amplifying. This very compact unit is recommended for large TV distribution networks in multi-dwellings or hospitality premises to provide outstanding TV quality.

The TMB2500 is the successor to the state of the art TMB2000, with several improvements for even more business opportunities.

Upgraded features:

• Higher gain and output level in order to connect more subscribers at the coaxial distribution network directly
• Clustering of up to 6 MUX enhances the flexibility to cover special terrestrial broadcast situations in an optimal way
• Higher selectivity for suppression of interference from adjacent channels

• 5 antenna inputs: FM / 4xVHF/UHF
• Flex Matrix for more than 50 channels by 32 filters per 1…6 MUX enables individual channel processing to any output channel
• Real-time AGC separately on all multiplexes
• 50 dB suppression of adjacent channels
• Automatic switch between LTE 700-5G/800-4G rejection
• Slope to compensate frequency dependent tilt of the coax cable network
• Setup locking with security code
• Switchable remote feeding 0/12/24 VDC
• SD card slot for saving and reloading individual setup configurations

CHARACTERISTICS
Input level - VHF/DAB: 40...109dBµV
Input level - FM: 37...77dBµV
Input level - UHF: 40...109dBµV
MER - VHF/UHF: 35dB
Output level-VHF/UHF (35DB/IM3): 131dBµV
Output level @ 1 X MUX /6 x MUX: 118 / 114dBµV
Selectivity: 50dB/1MHz
Test point: -30dB

FREQUENCY
Frequency range FM: 88...108MHz
Frequency range VHF/DAB: 174...240MHz
Frequency range UHF with automatic LTE selection: 470....694/790/862MHz
Number of MUXes: >50 (15 filters, each filter per 1,2,3,4,5 or 6 MUXes)

GAIN
Gain - FM: 35dB
Gain - VHF: 75dB
Gain - UHF: 75dB

LOSS
Attenuator-FM: 0...20dB
Attenuator-VHF/UHF: Channel AGC
Attenuator sum signal: 0...20dB

ELECTRICAL
Impedance: 75Ω

OPERATIONAL
Operating temperature range: -5....+50°C
AC Supply voltage: 100...240VAC
Power Consumption (typ.): 15W
Remote supply pre-amp: 12/24V, max. 100mA total at all inputs

CONNECTORS
RF-Connector Type: F-female
Number of outputs: 1x FM/DAB/VHF/UHF + 1x Test port
Main plug for PSU in 360232 (360238): Euro plug (UK plug)

MECHANICAL
Dimensions product (H x D x W): 165x58x165mm
Total Weight: 0.815kg
