Integrated services on a single fibre.
- SAT IF distribution over fibre optics (FO) can supply many households over larger distances, with feed from a central satellite dish station
- Almost lossless transmission of satellite, DVB-T and DAB signals. Attenuation per 1000 m only about 0.3 dB
- Future-proof and widest possible variety of channels
- Vertical and Horizontal Wideband IF signals are transmitted over one optical fibre using a Wideband LNB
- Space-saving installation - a 3 mm optical fibre replaces five 7 mm coaxial cables

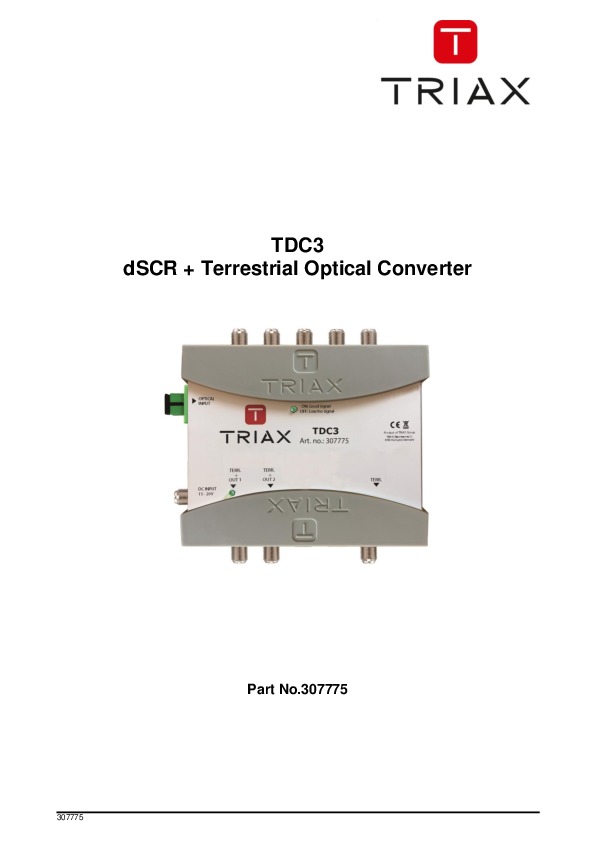

The TDC3 has 2 dSCR/Quad outputs and a separate Terrestrial output.
OPTICAL CHARACTERISTICS
Optical input power: -14...4 dBm
CHARACTERISTICS
Type: OPTO Converter
Wavelength: 1310...1330...1550 nm
Output level TER: 70 dBµV
dSCR output level: 80 dBµV
Gain ripple across band (max.): ±1.0 dB
FREQUENCY
Frequency range SAT: 950...2150 MHz
Frequency range TER: 40...790 MHz
RETURN LOSS
Return Loss: 10 dB
ELECTRICAL
Impedance: 75 Ω
OPERATIONAL
DC Operating voltage: 20 VDC
Remote Supply: 12...20 via output V/mA
Power Consumption (typ.): 5 W
IP Housing protection class: IP 20
Temperature - operating: -20...55 °C
CONNECTORS
Connector IN: Optical - SC/APC
Connector OUT: F-female
Number of inputs: 1
Number of outputs: 3 ( 2xdSCR/legacy/TER + 1xTER)
MECHANICAL
Dimensions product (H x D x W): 166x136x52 mm
